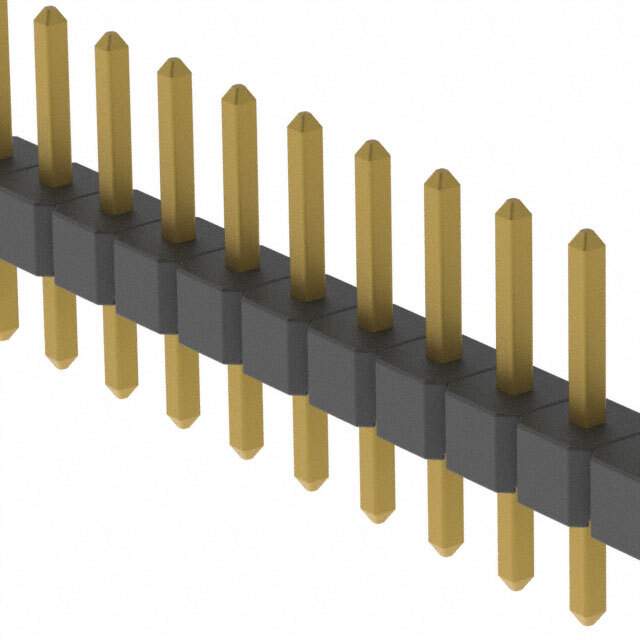

M22-2511205 Real Image
Same model may have multiple batches, images only for reference.

M22-2511205

Part No M22-2511205
Manufacturer Harwin Inc.
Catalog Circular Connectors - Housings
Description CONN HEADER VERT 12POS 2MM  /  Connector Header Through Hole 12 position 0.079" (2.00mm)
Datasheet
M22-2511205 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Harwin Inc.
Series M22
Package Bulk
Connector Type Header, Cuttable
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 12
Number of Rows 1
Number of Positions Loaded All
Style Board to Board
Shrouding Unshrouded
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.138" (3.50mm)
Contact Length - Post 0.091" (2.30mm)
Overall Contact Length 0.287" (7.30mm)
Insulation Height 0.059" (1.50mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Material Phosphor Bronze
Insulation Material Polyamide (PA6T), Nylon 6T
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 1A per Contact
Mated Stacking Heights 5.9mm, 8.6mm
Base Product Number M22-251
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 500
Win Source Part Number 1194326-M22-2511205
Ultra Librarian 3D Model Ultra Librarian M22-2511205 CAD Model

Description

The M22-2511205 is a male pin header connector from Harwin Inc.

  • Positions: 12
  • Style: Board-to-Board
  • Cuttable: Yes
  • Fastening Type: Push-Pull
  • Contact Finish (Mating): Gold
  • Termination: Solder
  • Operating Temperature: -40°C to 105°C
  • REACH: Unaffected
  • ECCN: EAR99
