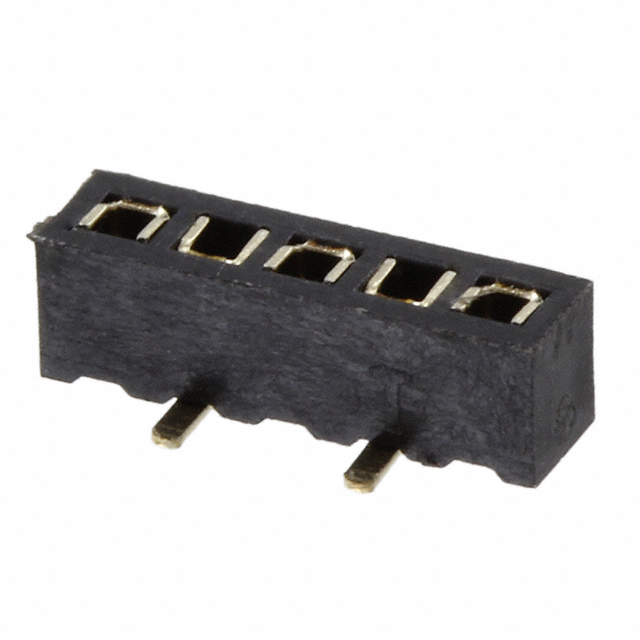

M50-3130545

Name: M50-3130545
Brand: Harwin Inc.
SKU: WS1331937
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	M50-3130545
Manufacturer	Harwin Inc.
Catalog	Rectangular Connectors - Headers, Receptacles, Female Sockets
Description	CONN RCPT 5POS 0.05 GOLD SMD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, InterconnectsRectangular ConnectorsHeaders, Receptacles, Female Sockets
Mfr	Harwin Inc.
Series	Archer M50
Packaging	Tube
Part Status	Active
Connector Type	Receptacle, Bottom or Top Entry
Contact Type	Female Socket
Style	Board to Board
Number of Positions	5
Number of Positions Loaded	All
Pitch - Mating	0.050" (1.27mm)
Number of Rows	1
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	12.0μin (0.30μm)
Insulation Color	Black
Insulation Height	0.079" (2.00mm)
Operating Temperature	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Gold
Mated Stacking Heights	3.1mm, 3.6mm, 3.8mm
Current Rating (Amps)	1A
Voltage Rating	500VAC
Applications	General Purpose, Medical, Telecommunications
Insulation Material	Polyamide (PA6T), Nylon 6T
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	M50-313
Ultra Librarian 3D Model	Ultra Librarian M50-3130545 CAD Model
