Same model may have multiple batches, images only for reference.

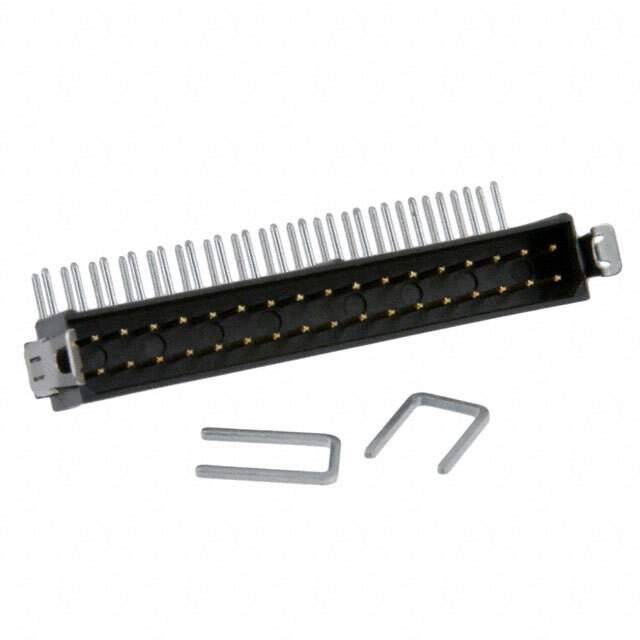

M80-8513442 Real Image
Same model may have multiple batches, images only for reference.

M80-8513442

Part No M80-8513442
Manufacturer Harwin Inc.
Catalog Rectangular Connectors
Description CONN HEADER R/A 34POS 2MM
Datasheet
M80-8513442 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 17 Weeks
Features Connector Header Through Hole, Right Angle 34 position 0.079" (2.00mm)
Manufacturer Harwin Inc.
Series Datamate L-Tek
Package Tube
Operating Temperature Range -55°C ~ 125°C
Mounting Through Hole, Right Angle
Family Name M80-851
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number M808513442, 952-1137-5
Quantity per package 6
Popularity High
Supply and Demand Status Balance
Win Source Part Number 924991-M80-8513442
Ultra Librarian 3D Model Ultra Librarian M80-8513442 CAD Model

Description

The Datamate L-Tek connector header through-hole, right angle 34 position 0.079" (2.00mm) from Harwin Inc. is a reliable component for various connector applications.

  • Mounting: Through-hole, right-angle
  • Positions: 34
  • Pitch: 0.079" (2.00mm)
  • Operating Temperature Range: -55°C to 125°C
  • Availability: in the open market
  • Quantity per Package: 6
  • Estimated Production Lead Time: 17 weeks
  • ECCN: EAR99
  • HTSUS: 8536.69.4040
  • Other Part Numbers: M808513442 and 952-1137-5
