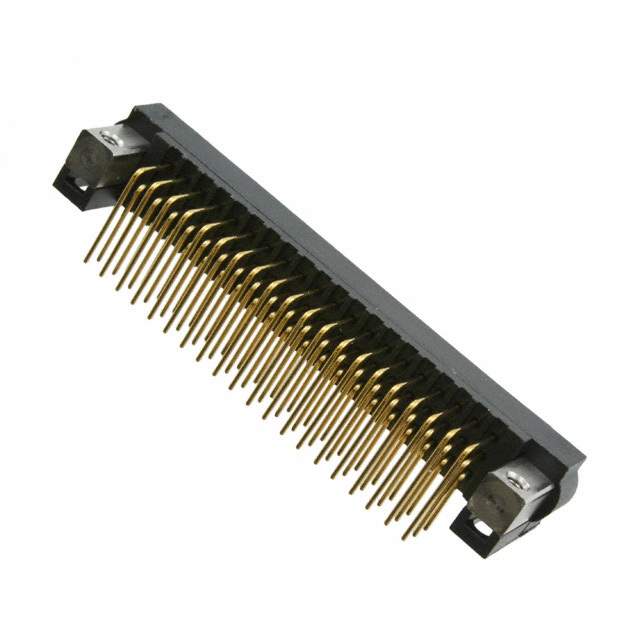

Same model may have multiple batches, images only for reference.

M83-LML3M1N60-0000-000

Name: M83-LML3M1N60-0000-000
Brand: Harwin Inc.
SKU: 480669
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	M83-LML3M1N60-0000-000
Manufacturer	Harwin Inc.
Catalog	Rectangular Connectors
Description	CONN HDR 2MM R/A W/SCREW 60POS
Datasheet	M83-LML3M1N60-0000-000 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Harwin Inc.
Packaging	Tray
Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Number of Positions	60
Number of Positions Loaded	All
Number of Rows	3
Row Spacing - Mating	0.079" (2.00mm)
Mounting	Through Hole, Right Angle
Termination	Solder
Fastening Type	Threaded
Contact Length - Post	0.157" (4.00mm)
Insulation Height	0.303" (7.70mm)
Contact Shape	Circular
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	29.5μin (0.75μm)
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Features	Mating Flange, Mounting Flange
Temperature Range - Operating	-55°C to 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating	2.2A per Contact
Voltage Rating	800V
Mated Stacking Heights	15.8mm, 18mm
Win Source Part Number	1064802-M83-LML3M1N60-0000-000
Popularity	Medium
Supply and Demand Status	Sufficient
Ultra Librarian 3D Model	Ultra Librarian M83-LML3M1N60-0000-000 CAD Model

Alternative Products

Description

The Harwin Inc. M83-LML3M1N60-0000-000 is a header connector with 60 male pins.

Voltage Rating: 800V
Current Rating: 2.2A per contact
Mounting Style: Through-hole, right-angle
Pitch-Mating: 0.079" (2.00mm)
Shrouding: Shrouded-4 wall
Insulation Material: Polyphenylene sulfide (PPS), glass-filled
Status: Active
Supply and Demand Status: Sufficient
