Same model may have multiple batches, images only for reference.

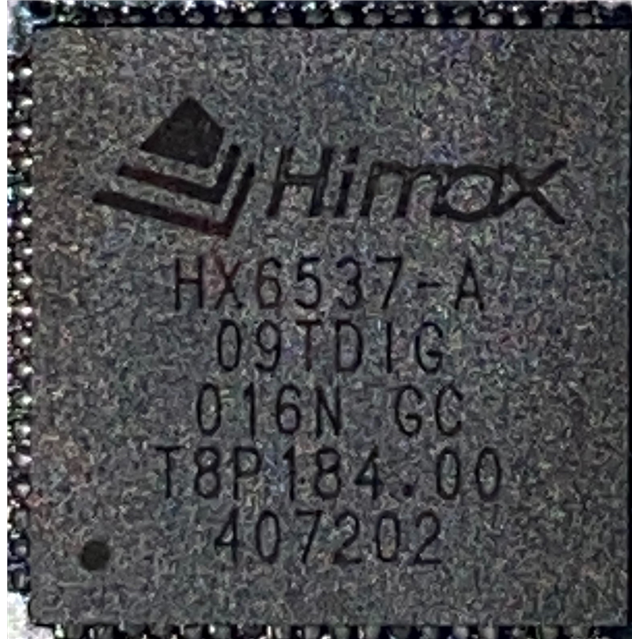

HX6537-A09TDIG Real Image
Same model may have multiple batches, images only for reference.

HX6537-A09TDIG

Part No HX6537-A09TDIG
Manufacturer Himax
Catalog Embedded - Microcontrollers
Description ULP MICROCONTROLLER-BASED AI PRO  /  ARC EM9D series Microcontroller IC 400MHz 2MB (2M x 8) FLASH 72-QFN (8x8)
Datasheet
HX6537-A09TDIG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - Microcontrollers
Mfr Himax
Package Tray
Core Processor ARC EM9D
Speed 400MHz
Connectivity I²C, PDM, SPI, UART/USART
Peripherals Brown-out Detect/Reset, DMA, I²S, POR, PWM, Sensor I/F, WDT
Number of I/O 9
Program Memory Size 2MB (2M x 8)
Program Memory Type FLASH
RAM Size 2M x 8
Supply Voltage - Operating 1.8V
Data Converters A/D 4x12b
Oscillator Type Internal
Mounting SMD (SMT)
Package / Case 72-VFQFN Exposed Pad
Supplier Device Package 72-QFN (8x8)
MSL Level 3 (168 Hours)
REACH Status REACH info available upon request
ECCN EAR99
Other Names 3367-HX6537-A09TDIG
Standard Package 580
Win Source Part Number 1182105-HX6537-A09TDIG
Ultra Librarian 3D Model Ultra Librarian HX6537-A09TDIG CAD Model

Description

The Himax HX6537-A09TDIG is an embedded microcontroller that is designed to function as an integrated circuit.

  • Manufacturer: Himax
  • Win Source Part Number: 1182105-HX6537-A09TDIG
  • Core Processor: ARC EM9D
  • Speed: 400MHz
  • Program Memory Size: 2MB (2M x 8)
  • Program Memory Type: FLASH
  • RAM Size: 2M x 8
  • Data Converters: A/D 4x12b
  • Connectivity: I²C, PDM, SPI, and UART/USART
  • Package Type: 72-VFQFN Exposed Pad
  • Supplier Device Package: 72-QFN (8x8)
  • Operating Supply Voltage: 1.8V
