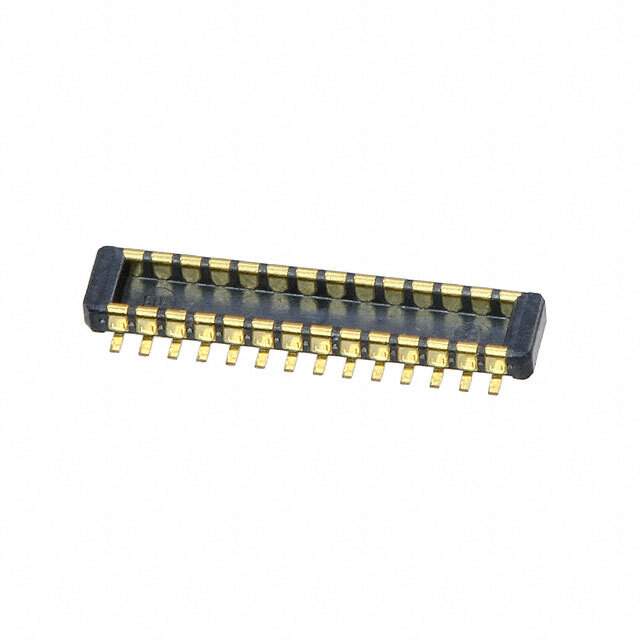

The BM20B(0.6)-24DP-0.4V(53) is a rectangular connector manufactured by Hirose Electric Co., Ltd. It is a part of the BM20 series of board-to-board connectors known for their fine pitch and space-saving design. This connector has 24 pins and a 0.6mm pitch, making it suitable for high-density applications where minimizing board space is critical.

Applications:

• Smartphones and mobile devices
• Digital cameras
• Laptop computers
• Tablets
• Other compact electronic devices

Features:

• Fine pitch (0.6mm)
• 24 pins
• Board-to-board connection
• Space-saving design
• High-density mounting

Benefits:

• Enables miniaturization of electronic devices.
• Provides a large number of connections in a small area.
• Allows for direct connection between two printed circuit boards.
• Reduces the overall size and weight of electronic devices.
• Maximizes the use of available board space.

Additional Details:

The BM20B(0.6)-24DP-0.4V(53) connector is typically made of high-temperature plastic to withstand reflow soldering processes. The contacts are usually gold-plated to ensure reliable electrical connection and prevent corrosion. The 0.4V likely refers to the voltage rating of the connector. The (53) at the end of the part number is likely a Hirose internal identifier, possibly related to packaging or specific product features. These connectors are often used in applications that require high-speed data transfer, and their small size allows for flexible board layouts. They are also designed to provide secure and reliable connections even under vibration and shock. Proper handling and soldering techniques are crucial to ensure optimal performance and prevent damage to the fine-pitch contacts. Mating height is an important consideration when selecting the appropriate connector from the BM20 series.
