Same model may have multiple batches, images only for reference.

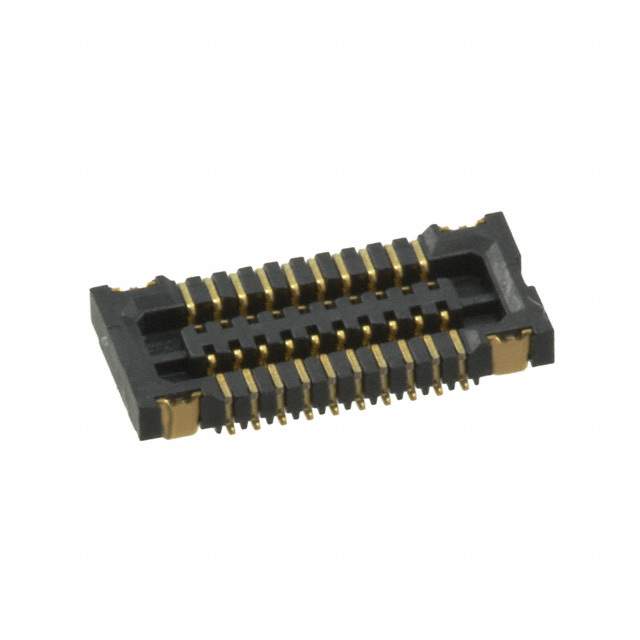

BM20B(0.8)-20DS-0.4V(53) Real Image
Same model may have multiple batches, images only for reference.

BM20B(0.8)-20DS-0.4V(53)

Part No BM20B(0.8)-20DS-0.4V(53)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN RECEPT 20POS 0.4MM SMD
Datasheet
BM20B(0.8)-20DS-0.4V(53) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Packaging Reel - TR
Status Active
Connector Type Receptacle, Center Strip Contacts
Number of Positions 20
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 0.8mm
Height Above Board 0.031" (0.80mm)
Win Source Part Number 1023693-BM20B(0.8)-20DS-0.4V(53)
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian BM20B(0.8)-20DS-0.4V(53) CAD Model

Description

The Hirose Electric Co Ltd BM20B(0.8)-20DS-0.4V(53) connector is a 20-position receptacle with center strip contacts and solder retention feature, designed for use in electronic devices.

  • Positions: 20
  • Pitch: 0.016" (0.40mm)
  • Height Above Board: 0.031" (0.80mm)
  • Mounting: Surface Mount Device (SMD) / Surface Mount Technology (SMT)
  • Rows: Two
  • Contact Finish: Gold
  • Mated Stacking Heights: 0.8mm
  • Packaging: Reel with a TR package
  • Quantity per Package: 1k pcs
  • Category: Connectors and Interconnects
  • Status: Active
