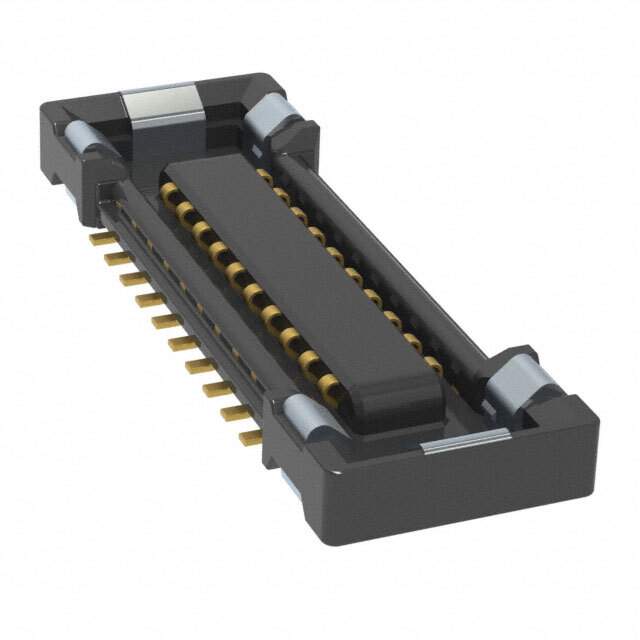

BM23FR0.6-20DS-0.35V(895) Real Image
Same model may have multiple batches, images only for reference.

BM23FR0.6-20DS-0.35V(895)

Part No BM23FR0.6-20DS-0.35V(895)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN RCPT 20POS SMD GOLD / 20 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Datasheet
BM23FR0.6-20DS-0.35V(895) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Hirose Electric Co Ltd
Series BM23
Package Tape & Reel
Connector Type Receptacle, Center Strip Contacts
Number of Positions 20
Pitch 0.014" (0.35mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Contact Finish Thickness 1.97µin (0.050µm)
Mated Stacking Heights 0.6mm
Height Above Board 0.024" (0.61mm)
Base Product Number BM23FR0.6
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 480-0272-0-95,H125630DKR,H125630TR,BM23FR0.6-20DS-0.35V(895)-ND,H125630CT
Standard Package 1,000
Win Source Part Number 969107-BM23FR0.6-20DS-0.35V(895)
Ultra Librarian 3D Model Ultra Librarian BM23FR0.6-20DS-0.35V(895) CAD Model

Description

The Hirose Electric Co Ltd BM23FR0.6-20DS-0.35V(895) is a rectangular connector designed for use in various electronic applications. With a Win Source part number of 969107-BM23FR0.6-20DS-0.35V(895), this product has a category of connectors, interconnects>rectangular connectors - arrays, edge type, mezzanine (board to board). The number of positions is 20, and the pitch is 0.014" (0.35mm). The connector type is receptacle, center strip contacts, and the contact finish is gold.
