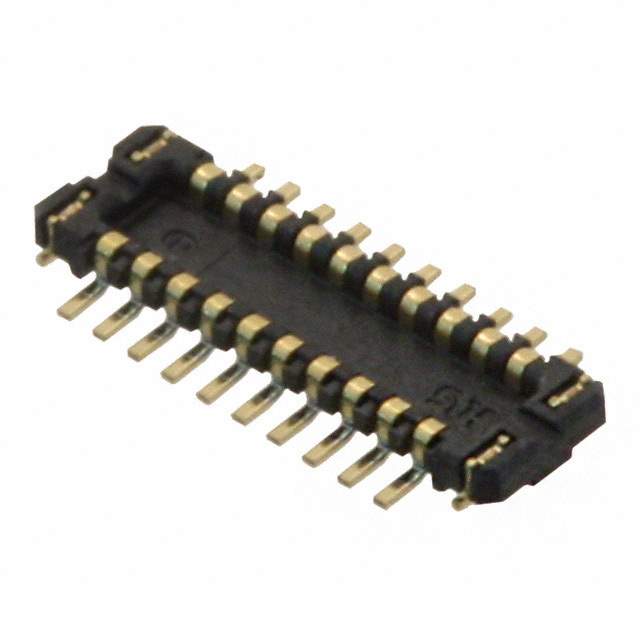

BM23PF0.8-20DP-0.35V(895)

Name: BM23PF0.8-20DP-0.35V(895)
Brand: Hirose Electric Co Ltd
SKU: 973027
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	BM23PF0.8-20DP-0.35V(895)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HDR 20POS SMD GOLD / 20 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Datasheet	BM23PF0.8-20DP-0.35V(895) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Hirose Electric Co Ltd
Series	BM23
Package	Tape & Reel
Connector Type	Header, Outer Shroud Contacts
Number of Positions	20
Pitch	0.014" (0.35mm)
Number of Rows	2
Mounting	SMD (SMT)
Features	Solder Retention
Contact Finish	Gold
Contact Finish Thickness	1.97µin (0.050µm)
Mated Stacking Heights	0.8mm
Height Above Board	0.025" (0.63mm)
Base Product Number	BM23PF0.8
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	BM23PF0.8-20DP-0.35V(895)-ND,H125644DKR,H125644CT,480-0433-0-95,H125644TR
Standard Package	1,000
Win Source Part Number	973027-BM23PF0.8-20DP-0.35V(895)
Ultra Librarian 3D Model	Ultra Librarian BM23PF0.8-20DP-0.35V(895) CAD Model

Alternative Products

Description

The Hirose Electric Co Ltd BM23 series is a rectangular connector array that comes in a tape & reel package.

Category: Connectors, Interconnects
Series: BM23
Number of Positions: 20
Pitch: 0.014" (0.35mm)
Features: Solder Retention
Connector Type: Header, Outer Shroud Contacts
Rows: Two
Contact Finish: Gold
Contact Finish Thickness: 1.97µin (0.050µm)
Mated Stacking Heights: 0.8mm
Height Above Board: 0.025" (0.63mm)
MSL Level: 1 (unlimited)
HTSUS: 8536.69.4040
Other Names: BM23PF0.8-20DP-0.35V(895)-ND, H125644DKR, H125644CT, 480-0433-0-95, and H125644TR
Base Product Number: BM23PF0.8
