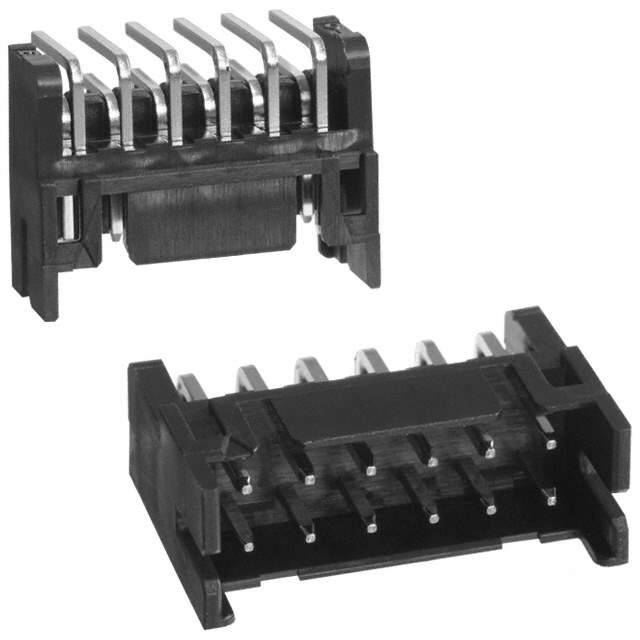

DF11-12DP-2DS(24) Real Image
Same model may have multiple batches, images only for reference.

DF11-12DP-2DS(24)

Part No DF11-12DP-2DS(24)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HEADER R/A 12POS 2MM / Connector Header Through Hole, Right Angle 12 position 0.079" (2.00mm)
Datasheet
DF11-12DP-2DS(24) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Hirose Electric Co Ltd
Packaging Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 12
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.118" (3.00mm)
Contact Length - Post 0.118" (3.00mm)
Insulation Height 0.197" (5.00mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 39.4µin (1.00µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Temperature Range - Operating -40°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 2A
Voltage Rating 250V
Base Product Number DF11
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number Q3678158AA,DF1112DP2DS24,543-0537-2-24,*DF11-12DP-2DS(24),H10248
Standard Package 34
Win Source Part Number 1332433-DF11-12DP-2DS(24)
Ultra Librarian 3D Model Ultra Librarian DF11-12DP-2DS(24) CAD Model

Description

The DF11 Series 12-position rectangular connector header from Hirose Electric Co Ltd is a male pin header with a through-hole, right-angle mounting feature.

  • Manufacturer: Hirose Electric Co Ltd
  • Series: DF11
  • Positions: 12
  • Connector Type: Rectangular Connector Header
  • Contact Gender: Male Pin
  • Mounting Feature: Through-Hole, Right-Angle
  • Pitch: 0.079" (2.00mm)
  • Insulation Material: Polyamide (PA) Nylon
  • Contact Material: Brass
  • Contact Finish Mating: Tin
  • Contact Finish Thickness: 39.4µin (1.00µm)
  • Voltage Rating: 250V
  • Current Rating: 2A
  • RoHS3 Compliant: Yes
  • Material Flammability Rating: UL94 V-0
  • Temperature Range Operating: -40°C to 85°C
  • Standard Package: 34
