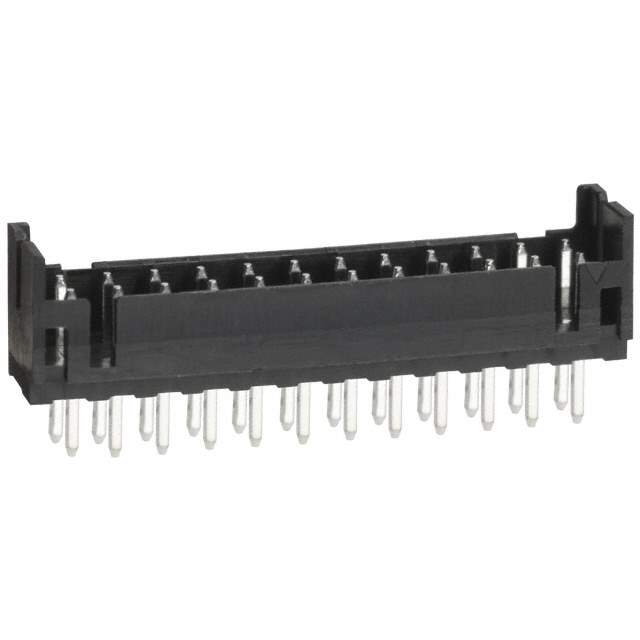

DF11-24DP-2DSA(08) Real Image
Same model may have multiple batches, images only for reference.

DF11-24DP-2DSA(08)

Part No DF11-24DP-2DSA(08)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN PIN 24POS 2MM DUAL TH
Datasheet
DF11-24DP-2DSA(08) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Packaging Bulk
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Number of Positions 24
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Mounting Through Hole
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.118" (3.00mm)
Contact Length - Post 0.118" (3.00mm)
Overall Contact Length 0.299" (7.60mm)
Insulation Height 0.260" (6.60mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 39μin (1.00μm)
Contact Finish - Post Tin
Insulation Material Polyamide (PA), Nylon
Temperature Range - Operating -30°C to 85°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating 2A
Voltage Rating 250V
Mated Stacking Heights 7.55, 7.8mm, 8.9mm
Win Source Part Number 124968-DF11-24DP-2DSA(08)
Popularity Medium
Supply and Demand Status Balance
Quantity per package 100
Ultra Librarian 3D Model Ultra Librarian DF11-24DP-2DSA(08) CAD Model

Description

The DF11-24DP-2DSA(08) connector is engineered for durability and precision, suitable for high-density electronic applications. Its 24-position configuration offers versatility and reliability.

  • Applications:
    • Automotive electronics
    • Network devices
    • Medical equipment
    • Embedded systems
  • Features and Benefits:
    • High-density configuration
    • Durable materials for extended lifespan
    • Optimized for easy soldering and assembly
  • Additional Details: The connector is resistant to both high temperatures and humidity, facilitating use in challenging environments.
