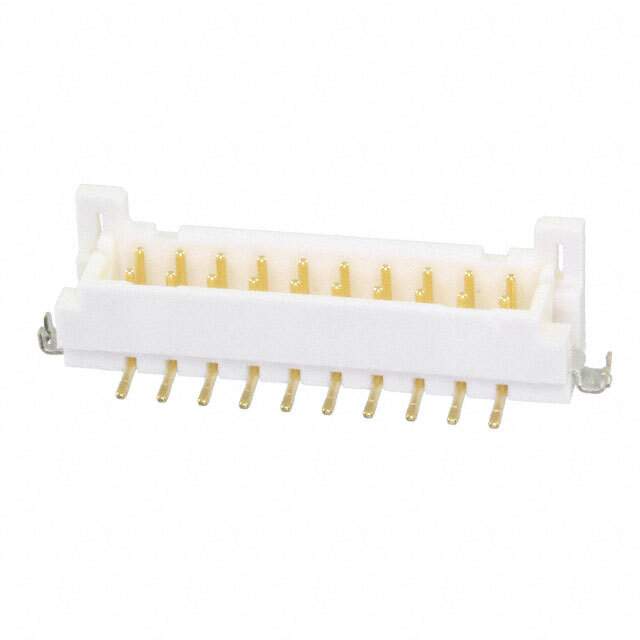

DF11C-20DP-2V(57) Real Image
Same model may have multiple batches, images only for reference.

DF11C-20DP-2V(57)

Part No DF11C-20DP-2V(57)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HEADER SMD 20POS 2MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 25 Weeks
Features Connector Header Surface Mount 20 position 0.079" (2.00mm)
Manufacturer Hirose Electric Co Ltd
Series DF11
Package Reel - TR
Operating Temperature Range -30°C ~ 85°C
Mounting Surface Mount
Family Name DF11C
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number H124544TR, *DF11C-20DP-2V(57)-ND, H124544DKR, 543-0690-0-57, -DF11C-20DP-2V(57)-ND, *DF11C-20DP-2V(57), -DF11C-20DP-2V(57)CT, H124544CT, DF11C-20DP-2V(57)-ND, *DF11C-20DP-2V(57)DKR-ND, *DF11C-20DP-2V(57)CT-ND, -DF11C-20DP-2V(57), -DF11C-20DP-2V(57)DKR
Quantity per package 500
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 868363-DF11C-20DP-2V(57)
Ultra Librarian 3D Model Ultra Librarian DF11C-20DP-2V(57) CAD Model

Description

The Hirose Electric Co Ltd DF11 series is a 20 position connector header that is designed for surface mount mounting.

  • Positions: 20
  • Mounting: Surface mount
  • Pitch: 0.079 inches (2.00mm)
  • Package: Reel - TR
  • Quantity: 500 connectors per package
