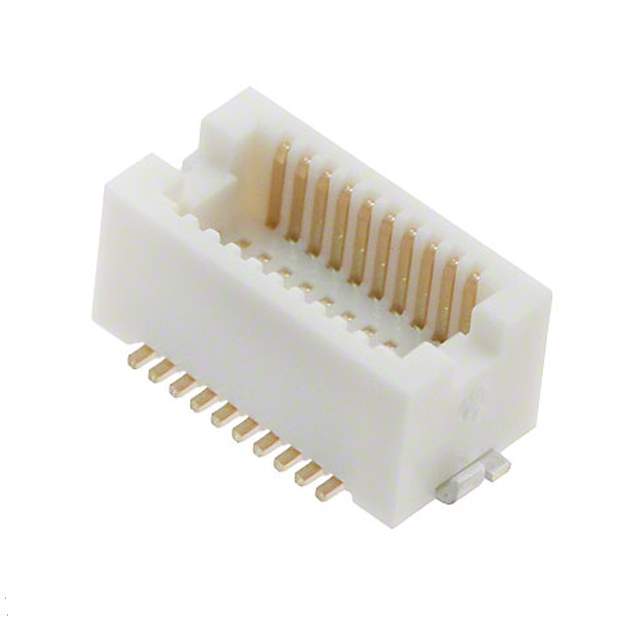

Same model may have multiple batches, images only for reference.

DF12(4.0)-20DP-0.5V(86)

Name: DF12(4.0)-20DP-0.5V(86)
Brand: Hirose Electric Co Ltd
SKU: 868382
Availability: InStock
Rating: 4.93 (48 reviews)

Get a Quote

Part No	DF12(4.0)-20DP-0.5V(86)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HDR 20POS SMD GOLD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors
Features	20 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Manufacturer	Hirose Electric Co Ltd
Series	DF12
Package	Reel - TR
Part Status	Obsolete
Mounting	Surface Mount
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	537-0053-4-86, Q8728745D, 537-0053-4 86, H11707TR, H11707CT, H11707DKR, DF124020DP05V86, *DF12(4.0)-20DP-0.5V(86)
Quantity per package	1000
Popularity	Medium
Supply and Demand Status	Limited
Win Source Part Number	868382-DF12(4.0)-20DP-0.5V(86)
Ultra Librarian 3D Model	Ultra Librarian DF12(4.0)-20DP-0.5V(86) CAD Model

Alternative Products

Description

The Hirose Electric Co Ltd DF12(4.0)-20DP-0.5V(86) connector header is a surface mount connector with outer shroud contacts and 20 positions.

Contact Finish: Gold
Status: Obsolete
Category: Connectors
Popularity: Medium
Supply and Demand Status: Limited
Packaging: Reel of 1,000 pcs
