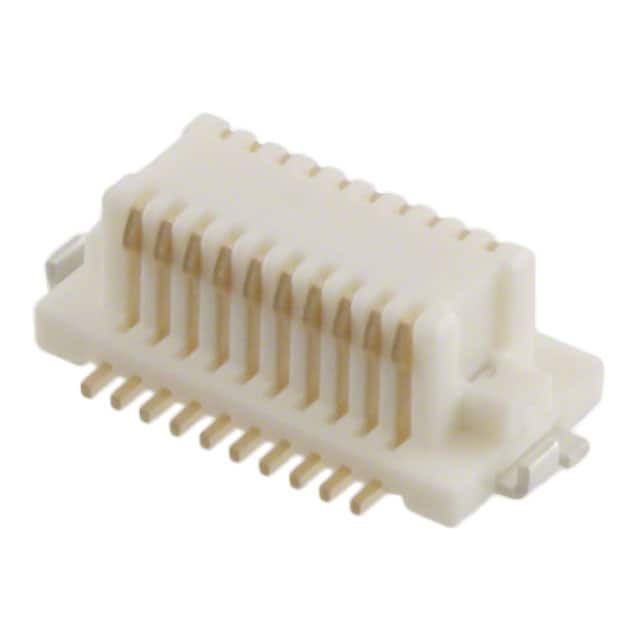

DF12A(3.0)-20DS-0.5V(81)
Same model may have multiple batches, images only for reference.

DF12A(3.0)-20DS-0.5V(81)

Part No DF12A(3.0)-20DS-0.5V(81)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN RCPT 20POS SMD GOLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Features 20 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Manufacturer Hirose Electric Co Ltd
Series DF12
Package Reel - TR
Part Status Obsolete
Mounting Surface Mount
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number H11714TR, 537-0628-4-81, H11714CT, DF12A3020DS05V81, H11714DKR, *DF12A(3.0)-20DS-0.5V(81), 537-0628-4 81
Quantity per package 1000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 868389-DF12A(3.0)-20DS-0.5V(81)
Ultra Librarian 3D Model Ultra Librarian DF12A(3.0)-20DS-0.5V(81) CAD Model

Description

The Hirose Electric Co Ltd DF12 series is an obsolete 20-position connector receptacle with center strip contacts.

  • Contact Finish: Surface Mount Gold
  • Packaging: Reel-TR
  • Mounting Type: Surface Mount
  • Part Status: Obsolete
  • Category: Connectors
  • ECCN: EAR99
  • Supply and Demand Status: Limited
  • MSL Level: 1 (unlimited)
  • HTSUS: 8536.69.4040
  • Other Part Numbers: H11714TR, 537-0628-4-81, H11714CT, DF12A3020DS05V81, H11714DKR, *DF12A(3.0)-20DS-0.5V(81), 537-0628-4 81
