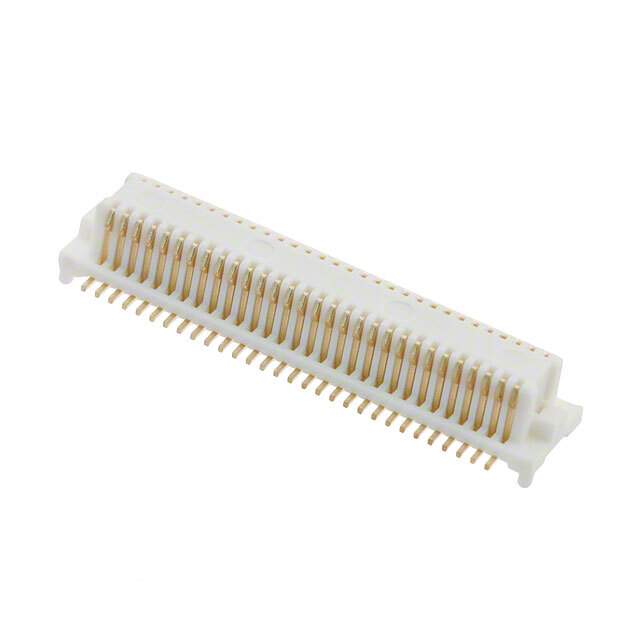

Same model may have multiple batches, images only for reference.

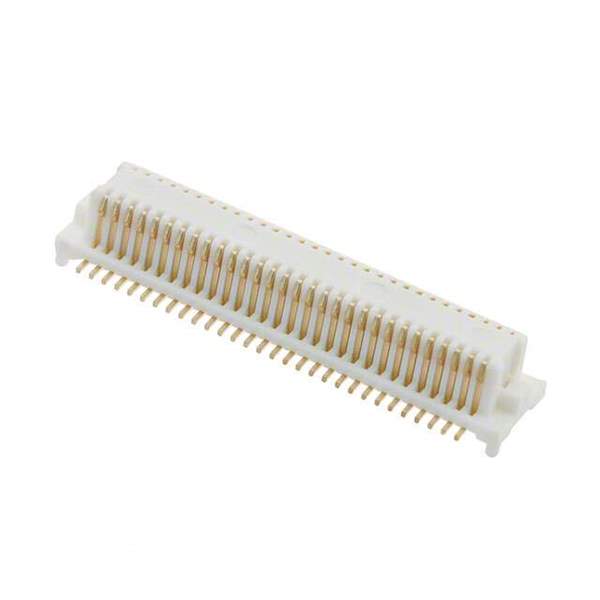

DF12C(3.0)-60DS-0.5V(81) Real Image
Same model may have multiple batches, images only for reference.

DF12C(3.0)-60DS-0.5V(81)

Part No DF12C(3.0)-60DS-0.5V(81)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN RCPT 60POS 3MM SMD 0.5MM / Conn Board to Board RCP 60 POS 0.5mm Solder ST SMD T/R
Datasheet
DF12C(3.0)-60DS-0.5V(81) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Series DF12
Packaging Reel package
Connector Type Receptacle, Center Strip Contacts
Number of Positions 60
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting SMD
Contact Finish Gold
Contact Finish Thickness 8μin (0.20μm)
Mated Stacking Heights 3mm
Height Above Board 0.087" (2.20mm)
Win Source Part Number 772563-DF12C(3.0)-60DS-0.5V(81)
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1k pcs
Family Name DF12
Introduction Date January 03, 1997
ECCN EAR99
Country of Origin Japan
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian DF12C(3.0)-60DS-0.5V(81) CAD Model

Description

The Hirose Electric Co Ltd 772563-DF12C(3.0)-60DS-0.5V(81) is a 60-position surface mount connector that features a pitch of 0.020" (0.50mm) and a contact finish of gold.

  • Pitch: 0.020" (0.50mm)
  • Contact Finish: Gold
  • Height Above Board: 0.087" (2.20mm)
  • Series: DF12
  • Supply and Demand Status: Limited
  • Package: Reel of 1k pcs
  • Estimated EOL Date: 2025
  • Ideal for: Wide range of electronic devices
  • Popularity: Medium
