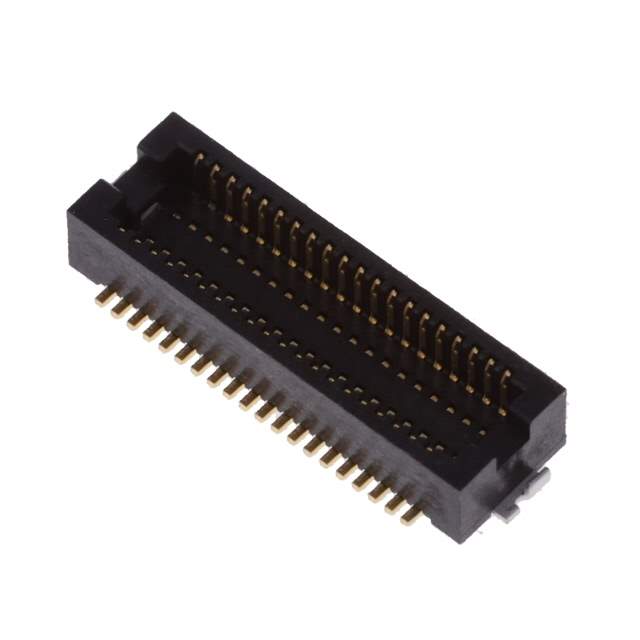

DF12NB(3.0)-40DP-0.5V(51) Real Image
Same model may have multiple batches, images only for reference.

DF12NB(3.0)-40DP-0.5V(51)

Part No DF12NB(3.0)-40DP-0.5V(51)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Hirose Electric Co Ltd
Series DF12
Package Tape & Reel
Connector Type Header, Outer Shroud Contacts
Number of Positions 40
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Contact Finish Thickness 8.00µin (0.203µm)
Mated Stacking Heights 3mm
Height Above Board 0.091" (2.30mm)
Base Product Number DF12N
Other Names 26-DF12NB(3.0)-40DP-0.5V(51)TR,537-0392-0-51,26-DF12NB(3.0)-40DP-0.5V(51)DKR,-1235-DF12NB(3.0)-40DP-0.5V(51)CT,537-0392-0 51,26-DF12NB(3.0)-40DP-0.5V(51)CT
Standard Package 1,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1294012-DF12NB(3.0)-40DP-0.5V(51)
Ultra Librarian 3D Model Ultra Librarian DF12NB(3.0)-40DP-0.5V(51) CAD Model

Description

The Hirose Electric Co Ltd 1294012-DF12NB(3.0)-40DP-0.5V(51) is a header, outer shroud contacts connector type with a pitch of 0.020" (0.50mm) and a number of positions of 40.

  • Connector Type: Header, Outer Shroud Contacts
  • Pitch: 0.020" (0.50mm)
  • Positions: 40
  • Features: Solder Retention
  • Contact Finish: Gold
  • Contact Finish Thickness: 8.00µin (0.203µm)
  • Category: Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
  • Package: Tape & Reel
  • Package Quantity: 1,000
  • Mated Stacking Height: 3mm
  • Height Above Board: 0.091" (2.30mm)
  • MSL Level: 1 (Unlimited)
  • ECCN: EAR99
  • HTSUS: 8536.69.4040
  • Other Names: 26-DF12NB(3.0)-40DP-0.5V(51)TR,537-0392-0-51,26-DF12NB(3.0)-40DP-0.5V(51)DKR,-1235-DF12NB(3.0)-40DP-0.5V(51)CT,537-0392-0 51,26-DF12NB(3.0)-40DP-0.5V(51)CT
