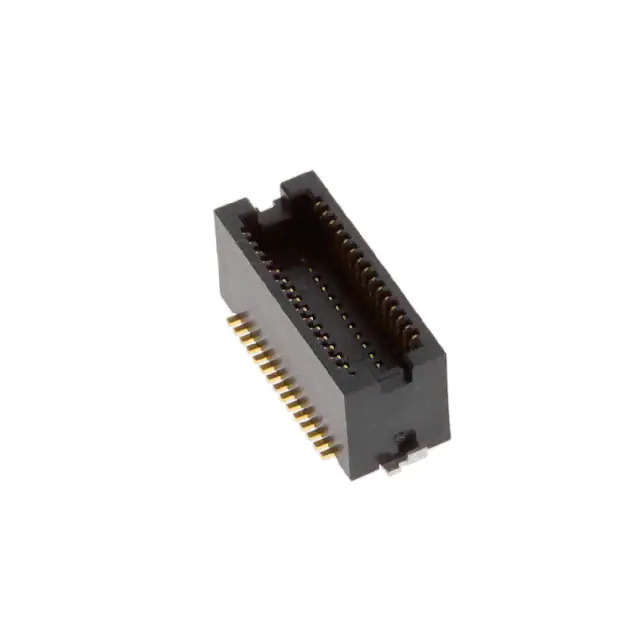

Same model may have multiple batches, images only for reference.

DF12NB(5.0)-30DP-0.5V(51)

Name: DF12NB(5.0)-30DP-0.5V(51)
Brand: Hirose Electric Co Ltd
SKU: 1364446
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	DF12NB(5.0)-30DP-0.5V(51)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HDR 30POS SMD GOLD / 30 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Hirose Electric Co Ltd
Series	DF12
Package	Tape & Reel
Product Status	Active
Connector Type	Header, Outer Shroud Contacts
Number of Positions	30
Pitch	0.020" (0.50mm)
Number of Rows	2
Mounting Type	Surface Mount
Features	Solder Retention
Contact Finish	Gold
Contact Finish Thickness	8.00µin (0.203µm)
Mated Stacking Heights	5mm
Height Above Board	0.169" (4.30mm)
Base Product Number	DF12N
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1364446-DF12NB(5.0)-30DP-0.5V(51)
Ultra Librarian 3D Model	Ultra Librarian DF12NB(5.0)-30DP-0.5V(51) CAD Model

Alternative Products

Description

The DF12NB(5.0)-30DP-0.5V(51) is a mezzanine connector from the DF12 series manufactured by Hirose Electric Co Ltd.

Series: DF12
Connector Type: Header with outer shroud contacts
Pitch: 0.020" (0.50mm)
Number of Positions: 30
Number of Rows: 2
Mated Stacking Height: 5mm
Mounting Type: Surface mountable
Height Above Board: 0.169" (4.30mm)
Contact Finish: Gold
Contact Finish Thickness: 8.00μin (0.203μm)
Features: Solder retention
