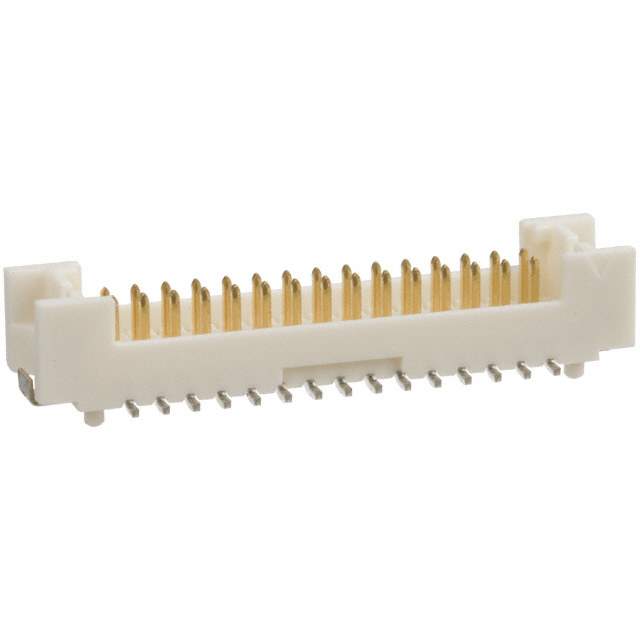

DF13-30DP-1.25V(55) Real Image
Same model may have multiple batches, images only for reference.

DF13-30DP-1.25V(55)

Part No DF13-30DP-1.25V(55)
Manufacturer Hirose Electric Co Ltd
Catalog Circular Connectors - Housings
Description CONN HEADER SMD 30POS 1.25MM / Connector Header Surface Mount 30 position 0.049" (1.25mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Hirose Electric Co Ltd
Series DF13
Package Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.049" (1.25mm)
Number of Positions 30
Number of Rows 2
Row Spacing - Mating 0.049" (1.25mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting SMD (SMT)
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.094" (2.40mm)
Insulation Height 0.189" (4.80mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 8.00µin (0.203µm)
Contact Finish - Post Tin-Copper
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Features Board Guide, Solder Retention
Temperature Range - Operating -35°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Beige
Current Rating (Amps) 1A
Voltage Rating 150V
Mated Stacking Heights 5.8mm
Contact Finish Thickness - Post 39.4µin (1.00µm)
Base Product Number DF13
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names *DF13-30DP-1.25V(55),DF13-30DP-1.25V55,DF13-30DP-1.25V55-ND,DF1330DP125V55,H10161,Q2076366
Standard Package 19
Win Source Part Number 1168831-DF13-30DP-1.25V(55)
Ultra Librarian 3D Model Ultra Librarian DF13-30DP-1.25V(55) CAD Model

Description

The 1168831-DF13-30DP-1.25V(55) is a rectangular connector header designed for use in male pins, a part of the DF13 series.

  • Positions: 30
  • Pitch: 0.049" (1.25mm)
  • Board Guide: Yes
  • Solder Retention: Yes
  • Connector Type: Header with Male Pins
  • Rows: 2
  • Contact Finish: Gold
  • Contact Finish Thickness: 8.00µin (0.203µm)
  • Voltage Rating: 150V
  • ECCN: EAR99
  • Mounting Type: SMD (SMT)
  • Mated Stacking Height: 5.8mm
  • Temperature Range: -35°C to 85°C
