Same model may have multiple batches, images only for reference.

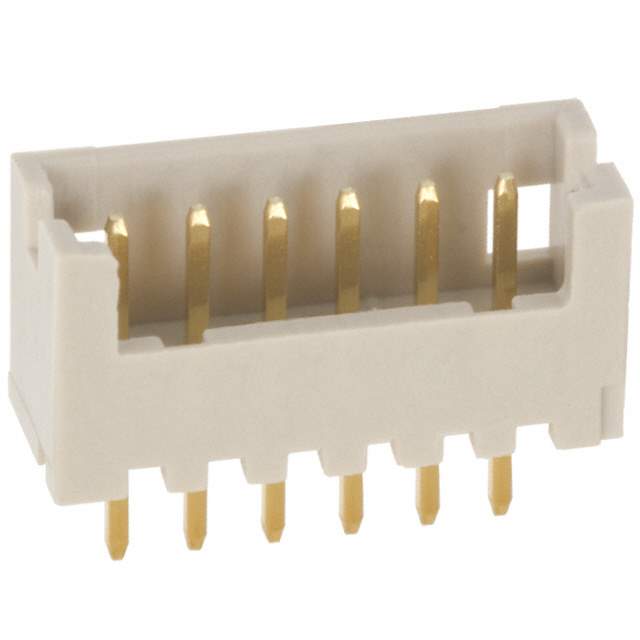

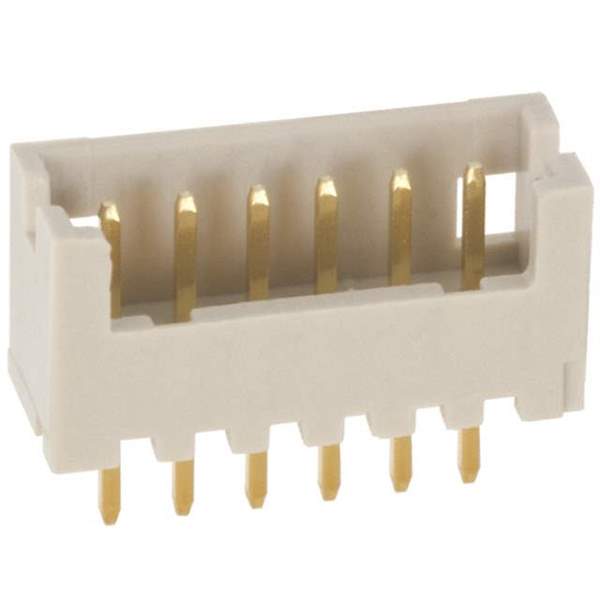

DF13-6P-1.25DSA(50)

Name: DF13-6P-1.25DSA(50)
Brand: Hirose Electric Co Ltd
SKU: 1293323
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	DF13-6P-1.25DSA(50)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Datasheet	DF13-6P-1.25DSA(50) Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Hirose Electric Co Ltd
Series	DF13
Package	Tube
Product Status	Obsolete
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.049" (1.25mm)
Number of Positions	6
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Detent Lock
Contact Length - Post	0.091" (2.30mm)
Insulation Height	0.169" (4.30mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	8.00µin (0.203µm)
Contact Material	Brass
Insulation Material	Polyamide (PA), Nylon
Temperature Range - Operating	-35°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Beige
Current Rating (Amps)	1A
Voltage Rating	150V
Mated Stacking Heights	5.3mm
Base Product Number	DF13
Other Names	DF136P125DSA50,Q8216890A,*DF13-6P-1.25DSA(50),H3309
Standard Package	52
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293323-DF13-6P-1.25DSA(50)
Ultra Librarian 3D Model	Ultra Librarian DF13-6P-1.25DSA(50) CAD Model

Alternative Products

Description

The Hirose Electric Co Ltd DF13-6P-1.25DSA(50) is a male pin header connector with a unique detent lock fastening type.

Shape: Rectangular
Wall Type: Shrouded 4 wall
Style: Board to cable/wire
Pitch-Mating: 0.049" (1.25mm)
Contact Finish-Mating: Gold
Contact Material: Brass
Insulation Material: Polyamide (PA), Nylon
Voltage Rating: 150V
Current Rating (Amps): 1A
