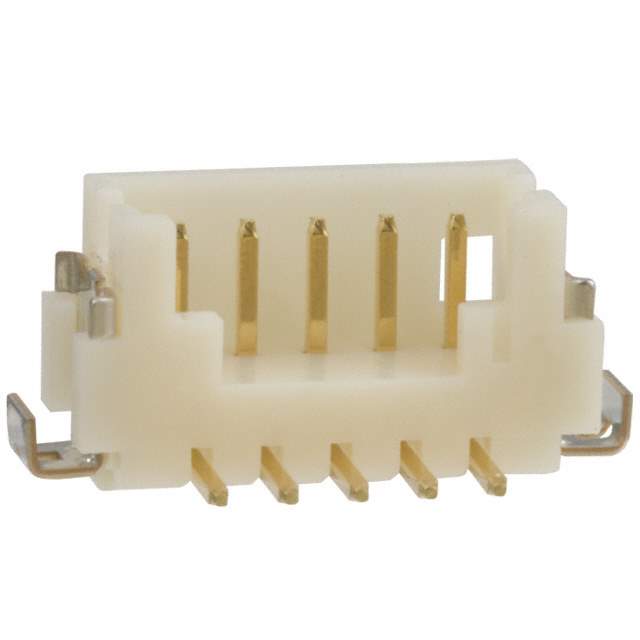

Same model may have multiple batches, images only for reference.

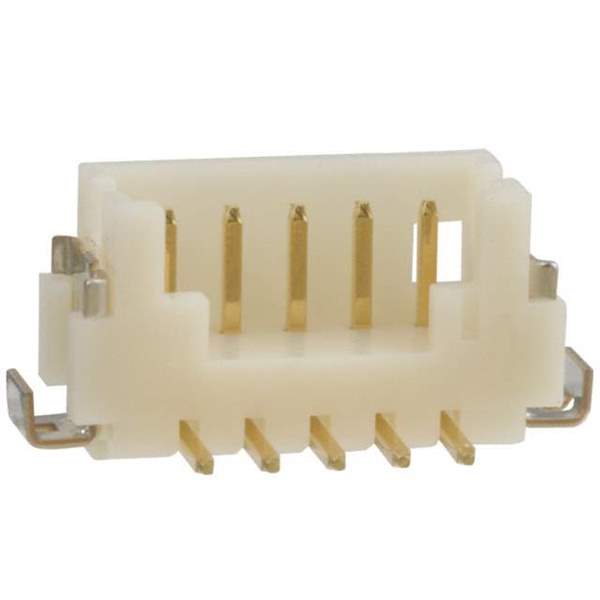

DF13C-5P-1.25V(51) Real Image
Same model may have multiple batches, images only for reference.

DF13C-5P-1.25V(51)

Part No DF13C-5P-1.25V(51)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Hirose Electric Co Ltd
Series DF13
Package Tape & Reel (TR)
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.049" (1.25mm)
Number of Positions 5
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 3 Wall
Mounting SMD (SMT)
Termination Solder
Fastening Type Detent Lock
Insulation Height 0.189" (4.80mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 8.00µin (0.203µm)
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Temperature Range - Operating -35°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Beige
Current Rating (Amps) 1A
Voltage Rating 150V
Mated Stacking Heights 5.8mm
Base Product Number DF13C
Other Names Q7534282,Q8745051,536-0404-0-51
Standard Package 1,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293327-DF13C-5P-1.25V(51)
Ultra Librarian 3D Model Ultra Librarian DF13C-5P-1.25V(51) CAD Model

Description

The DF13C-5P-1.25V(51) is a male pin header connector manufactured by Hirose Electric Co Ltd.

  • Series: DF13
  • Design: Board-to-cable/wire applications
  • Pitch Mating: 1.25mm
  • Contact Finish: Gold
  • Wall Type: Shrouded 3-wall
  • Voltage Rating: 150V
  • Current Rating: 1A
