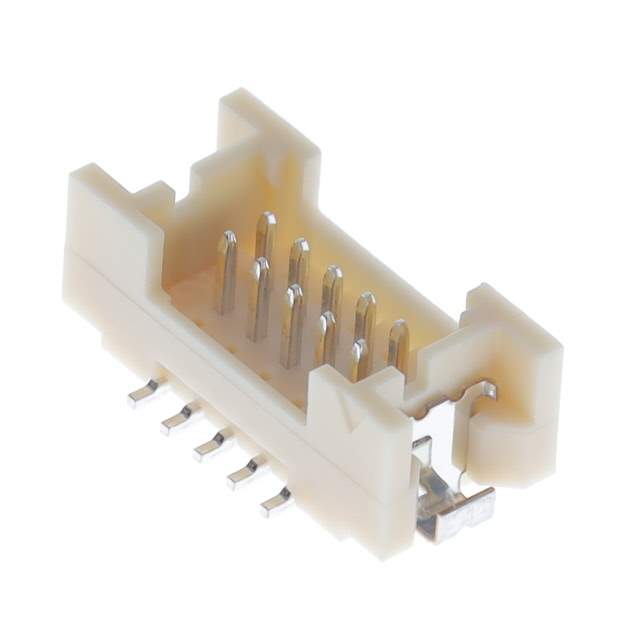

DF13EA-10DP-1.25V(22) Real Image
Same model may have multiple batches, images only for reference.

DF13EA-10DP-1.25V(22)

Part No DF13EA-10DP-1.25V(22)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Hirose Electric Co Ltd
Series DF13
Package Tape & Reel
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.049" (1.25mm)
Number of Positions 10
Number of Rows 2
Row Spacing - Mating 0.049" (1.25mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting SMD (SMT)
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.094" (2.40mm)
Insulation Height 0.189" (4.80mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 39.4µin (1.00µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Temperature Range - Operating -35°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Beige
Current Rating (Amps) 1A per Contact
Voltage Rating 150VAC/DC
Contact Finish Thickness - Post 39.4µin (1.00µm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1316357-DF13EA-10DP-1.25V(22)
Ultra Librarian 3D Model Ultra Librarian DF13EA-10DP-1.25V(22) CAD Model

Description

The DF13 series is a header connector type with male pins from Hirose Electric Co Ltd.

  • Positions: 10
  • Feature: Solder retention
  • Package: Tape and reel
  • Series: DF13
  • Category: Rectangular connectors - headers, male pins
  • Compliance: EAR99
  • HTSUS Code: 8536.69.4040
  • Current Rating (Amps): 1A per contact
