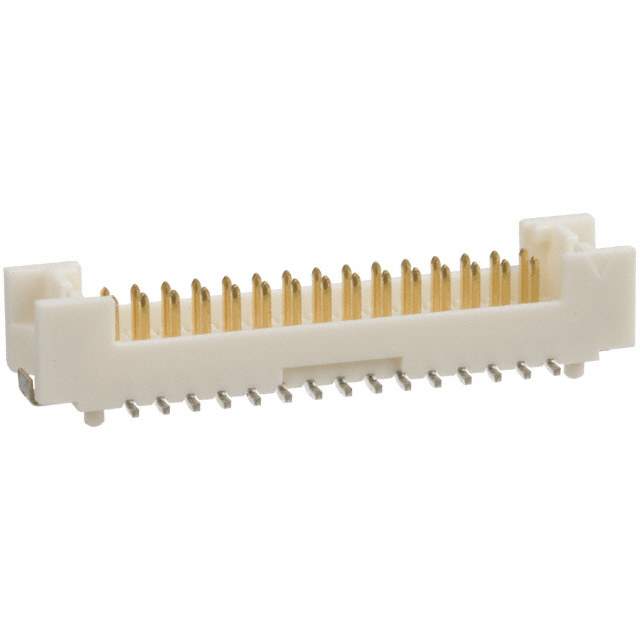

Same model may have multiple batches, images only for reference.

DF13EA-30DP-1.25V(51)

Name: DF13EA-30DP-1.25V(51)
Brand: Hirose Electric Co Ltd
SKU: 1293329
Availability: InStock
Rating: 4.93 (48 reviews)

Get a Quote

Part No	DF13EA-30DP-1.25V(51)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Hirose Electric Co Ltd
Series	DF13
Package	Tape & Reel
Product Status	Obsolete
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.049" (1.25mm)
Number of Positions	30
Number of Rows	2
Row Spacing - Mating	0.049" (1.25mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.094" (2.40mm)
Insulation Height	0.189" (4.80mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	8.00µin (0.203µm)
Contact Finish - Post	Tin-Copper
Contact Material	Brass
Insulation Material	Polyamide (PA), Nylon
Features	Solder Retention
Temperature Range - Operating	-35°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Beige
Current Rating (Amps)	1A
Voltage Rating	150V
Mated Stacking Heights	5.8mm
Contact Finish Thickness - Post	39.4µin (1.00µm)
Other Names	536-0572-0-51,H125402TR,H125402DKR,H125402CT
Standard Package	1,000
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293329-DF13EA-30DP-1.25V(51)
Ultra Librarian 3D Model	Ultra Librarian DF13EA-30DP-1.25V(51) CAD Model

Alternative Products

Description

The Hirose Electric Co Ltd DF13EA-30DP-1.25V(51) is a rectangular connector with male pins and solder retention features.

Positions: 30
Pitch: 0.049 inches (1.25mm)
Mounting: Surface
Contact Finish: Gold
Contact Finish Thickness: 8.00μin (0.203μm)
RoHS Compliant: Yes
Standard Package: 1000 units
Rows: Two
Mated Stacking Heights: 5.8mm
Application: Board-to-cable/wire
