Same model may have multiple batches, images only for reference.

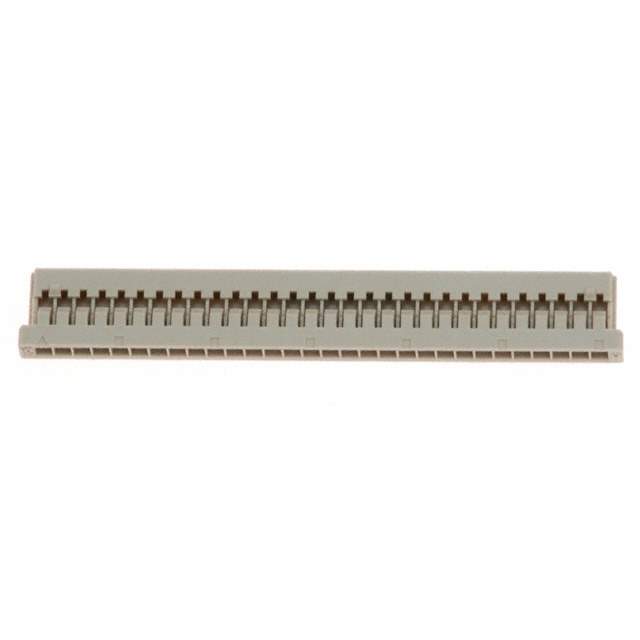

DF14-30S-1.25C Real Image
Same model may have multiple batches, images only for reference.

DF14-30S-1.25C

Part No DF14-30S-1.25C
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN RCPT HSG 30POS 1.25MM / 30 Rectangular Connectors - Housings Receptacle Beige 0.049" (1.25mm)
Datasheet
DF14-30S-1.25C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Rectangular Connector Housings
Manufacturer Hirose Electric Co Ltd
Packaging Bulk
Product Status Obsolete
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 30
Pitch 0.049" (1.25mm)
Number of Rows 1
Mounting Free Hanging (In-Line)
Contact Termination Crimp
Color Beige
Temperature Range - Operating -35°C ~ 85°C
Note Contacts Not Included
Base Product Number DF14
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.8000
Other Part Number *DF14-30S-1.25C,538-0012-3-00,H1575,DF1430S125C
Standard Package 100
Win Source Part Number 1332662-DF14-30S-1.25C
Ultra Librarian 3D Model Ultra Librarian DF14-30S-1.25C CAD Model

Description

The Hirose Electric Co Ltd DF14-30S-1.25C is a 30-position receptacle connector with a pitch of 1.25mm.

  • Color: beige
  • Mounting: free hanging (in-line)
  • RoHS Compliant: Yes
  • Temperature Range: -35°C to 85°C
  • Contact Termination: crimp
  • Connector Type: rectangular connector housing
  • Packaging: bulk
  • Series: DF14
  • Status: obsolete
  • Application: interconnects and rectangular connector housings
