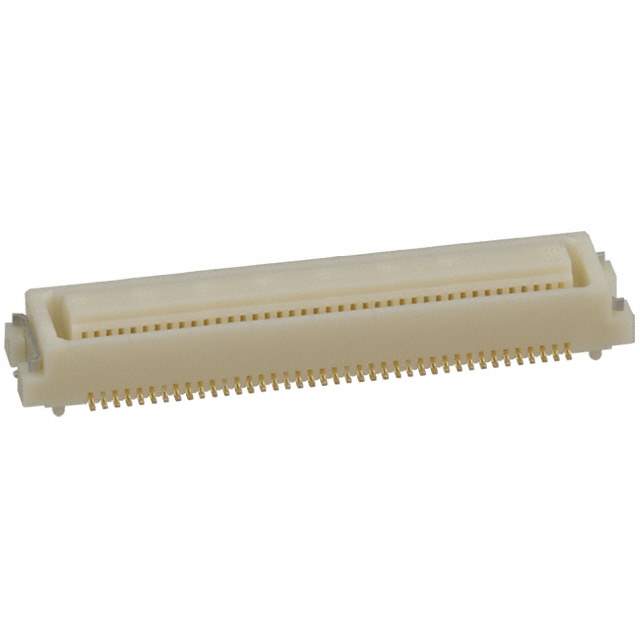

The DF17(3.0)-80DS-0.5V(57) is an 80-pin, double-row, 0.5mm pitch board-to-board connector manufactured by Hirose Electric Co. Ltd. It's part of the DF17 series, designed for high-density applications requiring reliable connections in compact spaces.

Applications:

• Connection between PCBs in tight enclosures.
• Smartphones and tablets.
• Digital cameras and camcorders.
• Medical devices.
• Industrial control equipment.

Features:

• 80 pins in a double-row configuration.
• 0.5mm pitch for high-density mounting.
• Board-to-board connection.
• Surface mount technology (SMT).
• Secure locking mechanism.
• High-speed data transmission capabilities.

Benefits:

• Enables high-density packaging of electronic components.
• Reliable connection even in environments with vibration and shock.
• Suitable for automated assembly processes.
• Supports high-speed data transfer.
• Space-saving design.

Additional Details:

The DF17 series connectors are known for their fine pitch and small form factor, making them ideal for applications where board space is limited. The secure locking mechanism ensures a reliable connection even under demanding conditions. The 0.5mm pitch allows for a high pin count in a small area, enabling high-density interconnect solutions. The connectors are designed for surface mount assembly, making them compatible with automated manufacturing processes. The DF17(3.0)-80DS-0.5V(57) provides a robust and reliable connection between PCBs, making it a suitable choice for a wide range of applications.

The small size and high pin count makes it well-suited for modern electronic devices.
