Same model may have multiple batches, images only for reference.

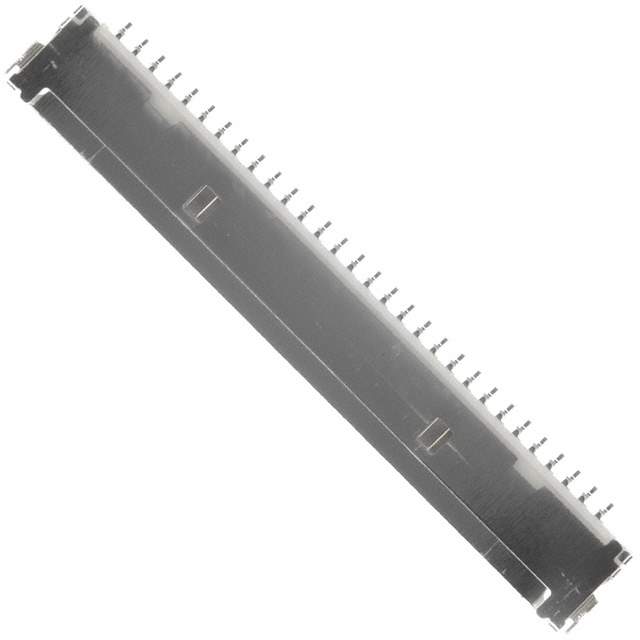

DF19G-30P-1H(56)

Name: DF19G-30P-1H(56)
Brand: Hirose Electric Co Ltd
SKU: 806608
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	DF19G-30P-1H(56)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HEADER SMD R/A 30POS 1MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Hirose Electric Co Ltd
Packaging	Reel
Part Status	Obsolete (End Of Life)
Connector Type	Receptacle
Contact Type	Male Pin
Pitch - Mating	0.039" (1.00mm)
Number of Positions	30
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 3 Wall
Mounting Style	Surface Mount, Right Angle
Termination	Solder
Fastening Type	Friction Lock
Insulation Height	0.065" (1.65mm)
Contact Finish - Mating	Gold
Contact Material	Phosphor Bronze
Insulation Material	Polyamide (PA), Nylon
Features	Glow Wire Compliant, Shielded, Solder Retention
Temperature Range - Operating	-35°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Beige
Voltage Rating	100V
Manufacturer Pack Quantity	1,000
MSL Level	1 (Unlimited)
Popularity	Medium
Supply and Demand Status	Balance
Win Source Part Number	806608-DF19G-30P-1H(56)
Ultra Librarian 3D Model	Ultra Librarian DF19G-30P-1H(56) CAD Model

Alternative Products

Description

The Hirose Electric Co Ltd DF19G-30P-1H(56) is a 30 position, 1-row rectangular connector designed for surface mount, right angle applications.

Positions: 30
Contact Type: Male Pin
Contact Finish: Gold
Pitch: 0.039" (1.00mm)
Packaging: Reel
Features: Shrouded - 3 wall, glow wire compliant, shielded, solder retention
