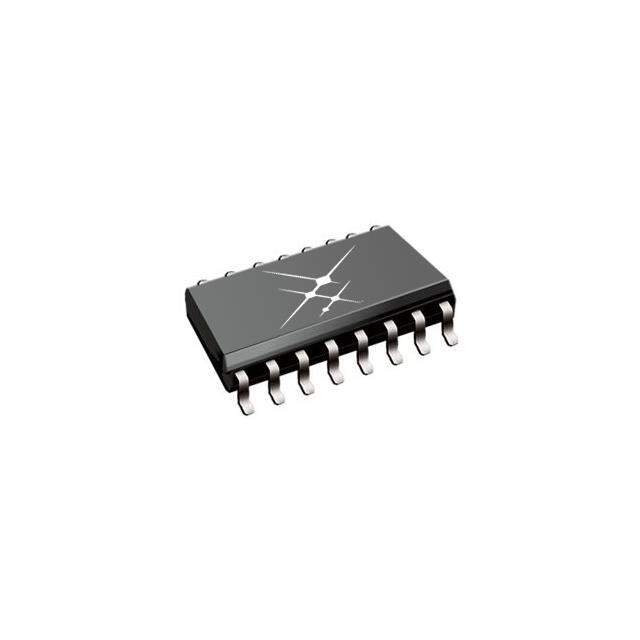

SI8275ABD-IS1 Real Image
Same model may have multiple batches, images only for reference.

SI8275ABD-IS1

Part No SI8275ABD-IS1
Manufacturer Skyworks Solutions Inc.
Catalog Isolators - Gate Drivers
Description 4A 2.5 KV HIGH CMTI DUAL GATE DR / 4A Gate Driver Capacitive Coupling 2500Vrms 2 Channel 16-SOIC
Datasheet
SI8275ABD-IS1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Isolators - Gate Drivers
Mfr Skyworks Solutions Inc.
Package Tube
Technology Capacitive Coupling
Number of Channels 2
Voltage - Isolation 2500Vrms
Common Mode Transient Immunity (Min) 200kV/µs
Propagation Delay tpLH / tpHL (Max) 75ns, 75ns
Pulse Width Distortion (Max) 8ns
Rise / Fall Time (Typ) 10.5ns, 13.3ns
Current - Output High, Low 1.8A, 4A
Current - Peak Output 4A
Voltage - Output Supply 4.2V ~ 30V
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package 16-SOIC
Approval Agency CQC, CSA, UL, VDE
Base Product Number SI8275
Other Names 336-5940
Standard Package 48
MSL Level 2A (4 Weeks)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1243734-SI8275ABD-IS1
Ultra Librarian 3D Model Ultra Librarian SI8275ABD-IS1 CAD Model

Description

The SI8275ABD-IS1 is an isolator gate driver from Skyworks Solutions Inc.

  • Channels: 2
  • Technology: Capacitive coupling technology
  • Voltage Isolation: 2500Vrms
  • Output Current (High): 1.8A
  • Output Current (Low): 4A
  • Temperature Range: -40°C to 125°C
  • Package: 16-SOIC
