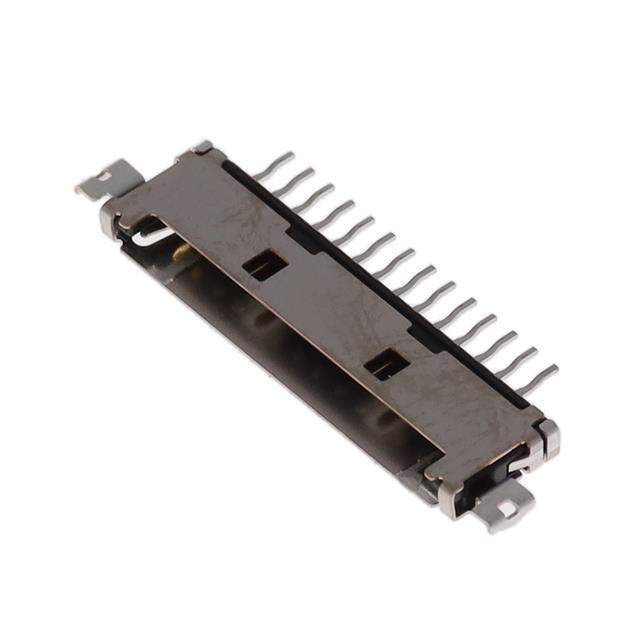

DF19L-14P-1H(52)

Name: DF19L-14P-1H(52)
Brand: Hirose Electric Co Ltd
SKU: 987606
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	DF19L-14P-1H(52)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HEADER BRD EDGE 14P 1MM / Connector Header Board Edge, Cutout; Surface Mount, Right Angle 14 position 0.039" (1.00mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Hirose Electric Co Ltd
Series	DF19
Package	Tape & Reel
Connector Type	Receptacle
Contact Type	Male Pin
Pitch - Mating	0.039" (1.00mm)
Number of Positions	14
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 3 Wall
Mounting Type	Board Edge, Cutout; Surface Mount, Right Angle
Termination	Solder
Fastening Type	Friction Lock
Insulation Height	0.057" (1.45mm)
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3.94µin (0.100µm)
Contact Finish - Post	Gold
Contact Material	Phosphor Bronze
Insulation Material	Polyamide (PA), Nylon
Features	Solder Retention
Temperature Range - Operating	-35°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	Varies by Wire Gauge
Voltage Rating	100VAC
Contact Finish Thickness - Post	3.94µin (0.100µm)
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	,26-DF19L-14P-1H(52)TR,26-DF19L-14P-1H(52)DKR,26-DF19L-14P-1H(52),685-0003-8-52,26-DF19L-14P-1H(52)-ND,26-DF19L-14P-1H(52)CT
Standard Package	1,000
Win Source Part Number	987606-DF19L-14P-1H(52)
Ultra Librarian 3D Model	Ultra Librarian DF19L-14P-1H(52) CAD Model

Alternative Products

Description

The DF19 series from Hirose Electric Co Ltd is a 14 position rectangular connector header with male pins.

Number of Positions: 14
Pin Gender: Male
Solder Retention: Yes
Connector Type: Receptacle
Positions Loaded: All
Number of Rows: 1
Locking Type: Friction Lock
Packaging: Tape and Reel
Contact Material: Phosphor Bronze
Voltage Rating: 100VAC
Connector Style: Board to Cable/Wire
Pitch: 0.039'' (1.00mm)
Contact Finish: Gold
Contact Finish Thickness: 3.94µin (0.100µm)
Shrouded: Yes, 3 Wall
Mounting Orientation: Board Edge, Cutout or Surface Mount Right Angle
ECCN: EAR99
MSL Level: 1 (Unlimited)
HTSUS: 8536.69.4040
