Same model may have multiple batches, images only for reference.

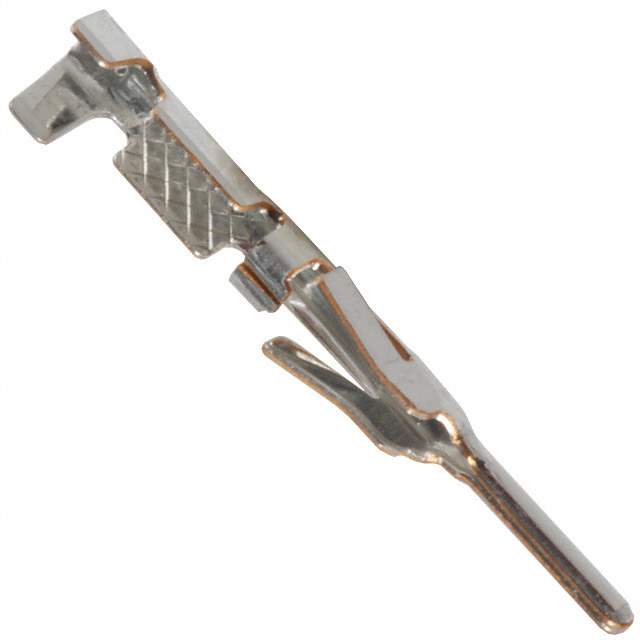

DF1B-2428PCF Real Image
Same model may have multiple batches, images only for reference.

DF1B-2428PCF

Part No DF1B-2428PCF
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Datasheet
DF1B-2428PCF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Contacts
Mfr Hirose Electric Co Ltd
Series DF1B
Package Tape & Reel (TR),Cut Tape (CT)
Pin or Socket Pin
Contact Termination Crimp
Wire Gauge 24-28 AWG
Contact Finish Tin
Base Product Number DF1B
Other Names DF1B2428PCF,*DF1B-2428PCF,H3831CT,541-0664-7-00,H3831TR
Standard Package 10,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1293440-DF1B-2428PCF
Ultra Librarian 3D Model Ultra Librarian DF1B-2428PCF CAD Model

Description

The Hirose Electric Co Ltd DF1B2428PCF is a crimp pin rectangular connector that is widely used in electronic devices.

  • Contact Finish: Tin
  • Wire Gauge: 24-28 AWG
  • Packaging: Tape and Reel or Cut Tape
  • Applications: Consumer electronics, automotive, and industrial equipment
  • Flammability Rating: UL94 V-0
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited Shelf Life)
  • HTSUS: 8536.90.4000
