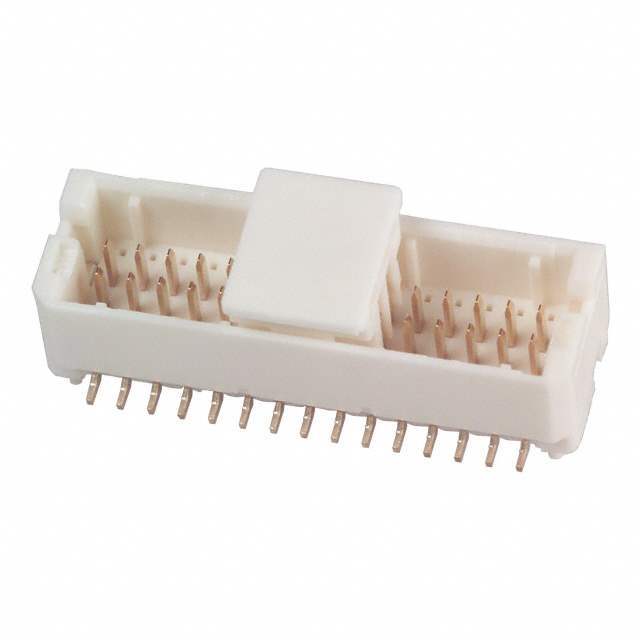

DF20F-30DP-1V(55)

Name: DF20F-30DP-1V(55)
Brand: Hirose Electric Co Ltd
SKU: WS1324728
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	DF20F-30DP-1V(55)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 30POS 1MM
Datasheet	DF20F-30DP-1V(55) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects >Rectangular Connectors >Headers, Male Pins
Mfr	Hirose Electric Co Ltd
Packaging	Tube
Part Status	Obsolete
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.039" (1.00mm)
Number of Positions	30
Number of Rows	2
Row Spacing - Mating	0.039" (1.00mm)
Ultra Librarian 3D Model	Ultra Librarian DF20F-30DP-1V(55) CAD Model

Alternative Products

Description

Contact Pitch 1mm contact pitch allows reliable solder and cable termination.
Reliable electrical connection wipe Effective electrical connection is assured with a 1mm wipe of mating contacts.
Narrower external width and length Redesigned metal fittings decreased the overall length of the board- mount receptacle and permit end-to-end mounting of several connectors.
Automatic equipment board placement Straight type pin headers are supplied with a 5.4mm × 4.6mm flat platform to allow vacuum pick-up and placement on the board.
