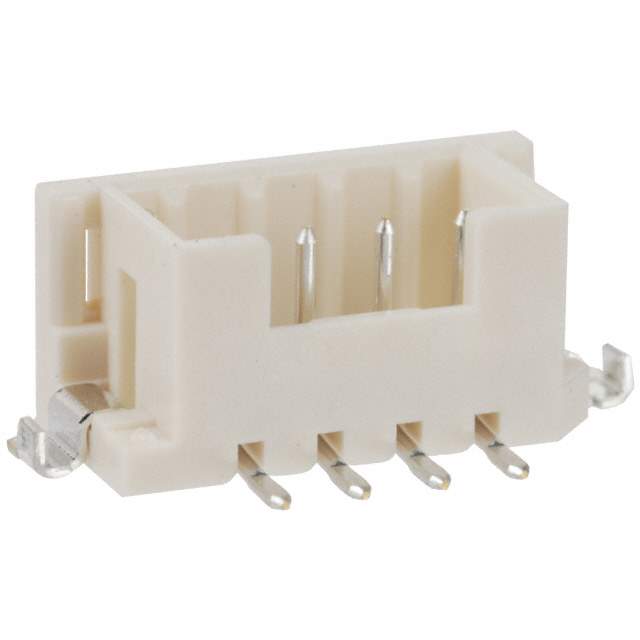

Same model may have multiple batches, images only for reference.

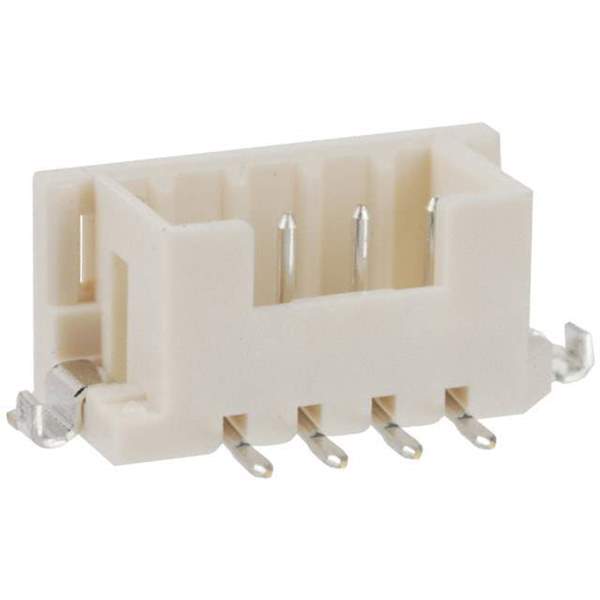

DF3-4P-2V(20) Real Image
Same model may have multiple batches, images only for reference.

DF3-4P-2V(20)

Part No DF3-4P-2V(20)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HEADER SMD 4POS 2MM
Datasheet
DF3-4P-2V(20) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Features Connector Header Surface Mount 4 position 0.079" (2.00mm)
Manufacturer Hirose Electric Co Ltd
Series DF3
Package Tube
Part Status Obsolete
Operating Temperature Range -55°C ~ 105°C
Mounting Surface Mount
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number *DF3-4P-2V(20), DF3-4P-2V, DF3-4P-2V20, H2118
Quantity per package 480
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 868515-DF3-4P-2V(20)
Ultra Librarian 3D Model Ultra Librarian DF3-4P-2V(20) CAD Model

Description

The Hirose Electric Co Ltd DF3 series connector header is a surface mount 4 position 0.079" (2.00mm) component that operates in a temperature range of -55°C to 105°C.

  • Operating Temperature: -55°C to 105°C
  • Package: Tube
  • Status: Obsolete
  • Category: Connectors
  • ECCN: EAR99
  • Popularity: Medium
  • Fake Product Threat: 45 percent
  • Supply and Demand Status: Limited
  • Package Quantity: 480
  • MSL Level: 1 (Unlimited)
  • REACH: Unaffected
  • HTSUS Code: 8536.69.4040
  • Other Part Numbers: *DF3-4P-2V(20), DF3-4P-2V, DF3-4P-2V20, and H2118
