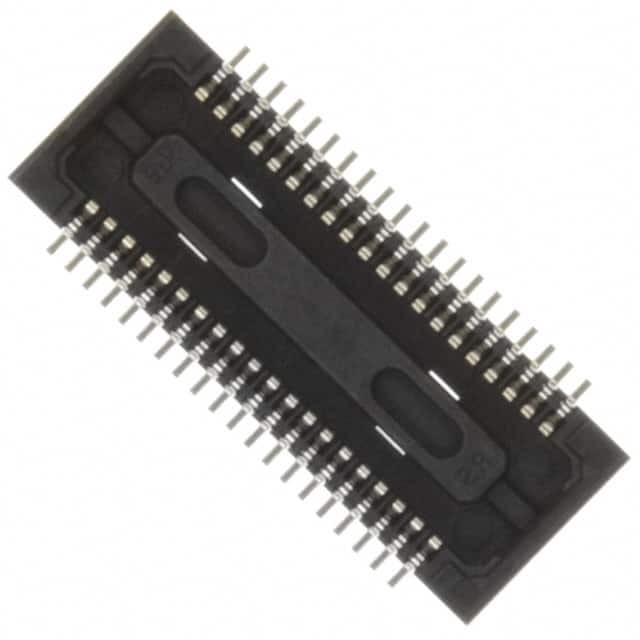

Same model may have multiple batches, images only for reference.
DF30FB-40DS-0.4V(81)
Same model may have multiple batches, images only for reference.

DF30FB-40DS-0.4V(81)

Part No DF30FB-40DS-0.4V(81)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN RCPT 40POS SMD GOLD / 40 Position Connector Receptacle, Outer Shroud Contacts Surface Mount Gold
Datasheet
DF30FB-40DS-0.4V(81) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Hirose Electric Co Ltd
Series DF30
Package Tape & Reel
Product Status Obsolete
Connector Type Receptacle, Outer Shroud Contacts
Number of Positions 40
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting Type Surface Mount
Features Solder Retention
Contact Finish Gold
Contact Finish Thickness 2.00µin (0.051µm)
Mated Stacking Heights 0.9mm
Height Above Board 0.035" (0.88mm)
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 868496-DF30FB-40DS-0.4V(81)
Ultra Librarian 3D Model Ultra Librarian DF30FB-40DS-0.4V(81) CAD Model

Description

The DF30FB-40DS-0.4V(81) is a rectangular connector array from Hirose Electric Co Ltd.

  • Series: DF30
  • Application: Board-to-board mezzanine
  • Positions: 40
  • Pitch: 0.016" (0.40mm)
  • Configuration: Receptacle, outer shroud contacts
  • Contact Finish: Gold
  • Contact Finish Thickness: 2.00µin (0.051µm)
  • Mounting: Surface mountable
  • Packaging: Tape and reel
  • Mated Stacking Height: 0.9mm
  • Height Above Board: 0.035" (0.88mm)
  • Standard Package: 5,000 pieces
