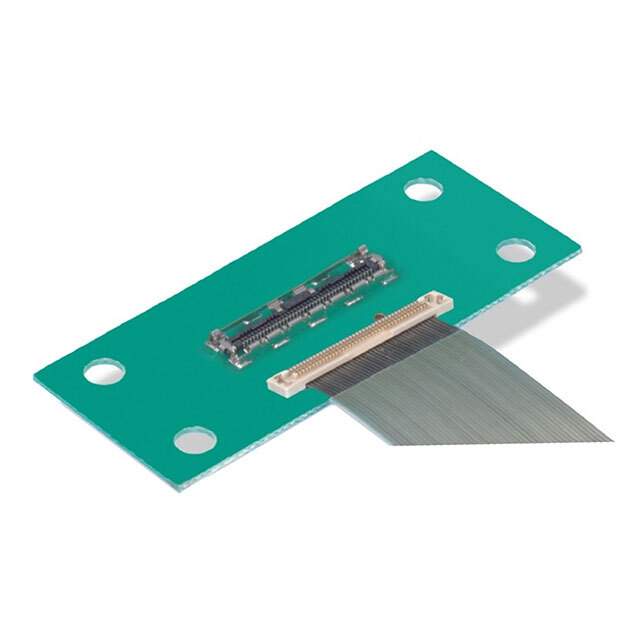

DF36-15S-0.4V(51)

Part No DF36-15S-0.4V(51)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN RCPT 0.4MM 15POS SMD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Packaging Reel - TR
Status Active
Connector Type Receptacle
Contact Type Center Strip Contact
Style Board to Cable/Wire
Number of Positions 15
Number of Positions Loaded All
Pitch - Mating 0.016" (0.40mm)
Number of Rows 1
Mounting SMD (SMT)
Termination Solder
Fastening Type Friction Lock
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 12μin (0.30μm)
Insulation Color Black
Insulation Height 0.059" (1.50mm)
Temperature Range - Operating -35°C to 85°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Gold
Features Solder Retention
Current Rating Varies by Wire Gauge
Voltage Rating 30VAC
Insulation Material Liquid Crystal Polymer (LCP), Halogen Free
Contact Finish Thickness - Post 3.9μin (0.10μm)
Win Source Part Number 1032955-DF36-15S-0.4V(51)
Popularity Medium
Supply and Demand Status Balance
Quantity per package 5k pcs
Ultra Librarian 3D Model Ultra Librarian DF36-15S-0.4V(51) CAD Model

Description

DF36-15S-0.4V(51) from Hirose Electric Co Ltd is a 15-position rectangular receptacle designed for compact board-to-cable/wire interconnect applications where fine pitch, low profile, and reliable SMT assembly are important. With 0.40 mm mating pitch, friction lock retention, solder termination, and solder retention features, it is well suited for space-constrained consumer electronics, portable devices, display modules, compact industrial equipment, and other densely populated PCB designs. The use of halogen-free LCP insulation and UL94 V-0 material supports designs that prioritize material performance and safety. Its listed active status suggests current production availability, although lifecycle planning should still include periodic manufacturer verification. RoHS compliance information is not explicitly provided in the supplied specifications, so engineers should treat compliance as information not available until confirmed by official Hirose documentation or distributor compliance records. For procurement teams, balanced supply-demand status is positive, but counterfeit exposure in the open market makes authorized sourcing especially important.
