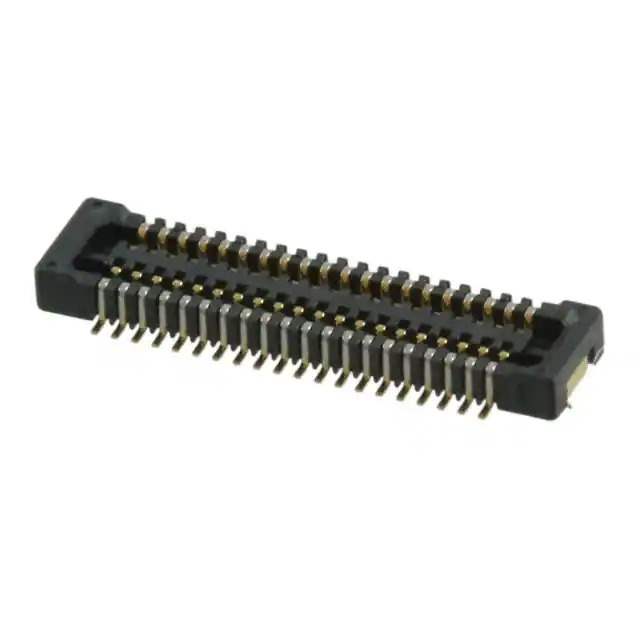

Same model may have multiple batches, images only for reference.

DF37B-40DS-0.4V(51)

Name: DF37B-40DS-0.4V(51)
Brand: Hirose Electric Co Ltd
SKU: 868529
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	DF37B-40DS-0.4V(51)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN RCPT 40POS SMD GOLD / 40 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Datasheet	DF37B-40DS-0.4V(51) Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Hirose Electric Co Ltd
Series	DF37
Package	Tape & Reel
Product Status	Obsolete
Connector Type	Receptacle, Center Strip Contacts
Number of Positions	40
Pitch	0.016" (0.40mm)
Number of Rows	2
Mounting Type	Surface Mount
Features	Solder Retention
Contact Finish	Gold
Contact Finish Thickness	2.00µin (0.051µm)
Mated Stacking Heights	0.98mm
Height Above Board	0.038" (0.97mm)
Standard Package	8,000 pcs
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	868529-DF37B-40DS-0.4V(51)
Ultra Librarian 3D Model	Ultra Librarian DF37B-40DS-0.4V(51) CAD Model

Alternative Products

Description

The DF37B-40DS-0.4V(51) is a rectangular connector array from Hirose Electric Co Ltd. It belongs to the DF37 series.

Positions: 40
Pitch: 0.016" (0.40mm)
Features: Solder retention
Type: Receptacle with center strip contacts
Rows: 2
Contact Finish: Gold with a thickness of 2.00μin (0.051μm)
Package: Tape & reel with a standard package of 8,000 pcs
Mounting: Surface mount
Status: Obsolete
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Regulations: Unaffected
ECCN: EAR99
HTSUS Code: 8536.69.4040
