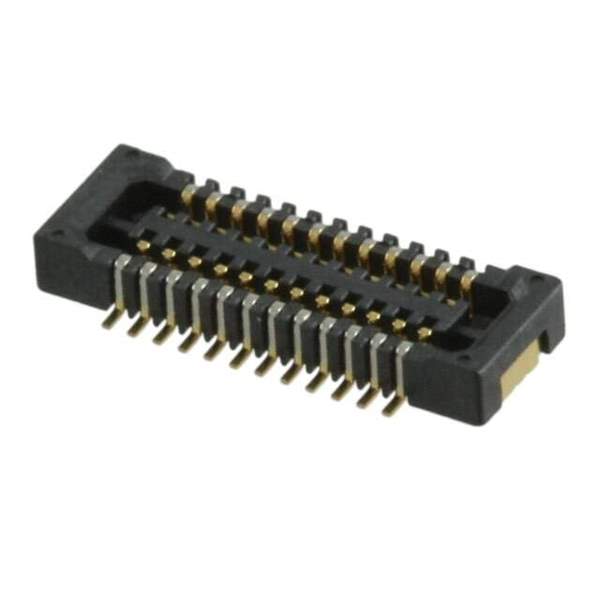

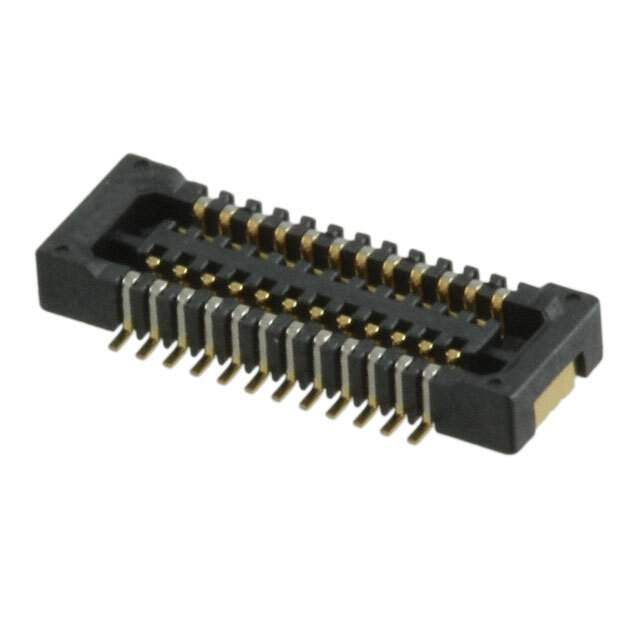

Same model may have multiple batches, images only for reference.

DF37C-24DS-0.4V(51)

Name: DF37C-24DS-0.4V(51)
Brand: Hirose Electric Co Ltd
SKU: 1055366
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	DF37C-24DS-0.4V(51)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN RCPT 24POS SMD GOLD / 24 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Datasheet	DF37C-24DS-0.4V(51) Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Hirose Electric Co Ltd
Series	DF37
Package	Tape & Reel (TR)
Product Status	Obsolete
Connector Type	Receptacle, Center Strip Contacts
Number of Positions	24
Pitch	0.016" (0.40mm)
Number of Rows	2
Mounting	SMD (SMT)
Contact Finish	Gold
Contact Finish Thickness	2.00µin (0.051µm)
Mated Stacking Heights	0.98mm
Height Above Board	0.038" (0.97mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	8,000
Win Source Part Number	1055366-DF37C-24DS-0.4V(51)
Ultra Librarian 3D Model	Ultra Librarian DF37C-24DS-0.4V(51) CAD Model

Alternative Products

Description

The Hirose Electric Co Ltd DF37C-24DS-0.4V(51) is a high-performance, 24-position, 0.016" pitch, mezzanine connector.

Positions: 24
Pitch: 0.016"
Connector Type: Receptacle connector with center strip contacts
Contact Finish: Gold
Height Above Board: 0.038" (0.97mm)
RoHS Compliant: Yes
MSL Level: 1
