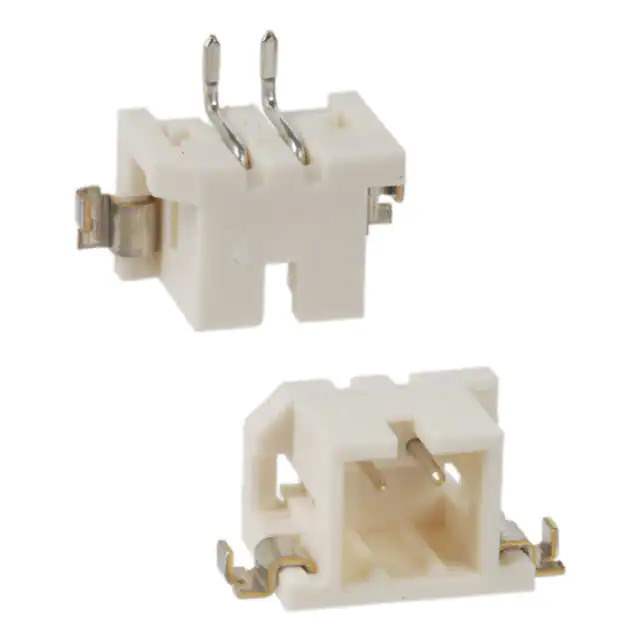

Same model may have multiple batches, images only for reference.

DF3DZ-2P-2H(21)

Name: DF3DZ-2P-2H(21)
Brand: Hirose Electric Co Ltd
SKU: 868555
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	DF3DZ-2P-2H(21)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HEADER SMD R/A 2POS 2MM / Connector Header Surface Mount, Right Angle 2 position 0.079" (2.00mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Hirose Electric Co Ltd
Series	DF3
Package	Tape & Reel
Product Status	Discontinued
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	2
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting Type	Surface Mount, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Insulation Height	0.220" (5.60mm)
Contact Shape	Circular
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA), Nylon
Temperature Range - Operating	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Beige
Current Rating (Amps)	3A
Standard Package	1,000 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	868555-DF3DZ-2P-2H(21)
Ultra Librarian 3D Model	Ultra Librarian DF3DZ-2P-2H(21) CAD Model

Alternative Products

Description

The 868555-DF3DZ-2P-2H(21) is a male pin header connector manufactured by Hirose Electric Co Ltd. It belongs to the DF3 series of connectors and falls under the category of connectors and interconnects.

Positions: 2
Connection Type: Board to board or cable
Fastening Type: Push-pull
Packaging: Tape and reel
Contact Material: Brass
Current Rating: 3A
Temperature Range: -55°C to 105°C
HTSUS Code: 8536.69.4040
Series Status: Discontinued
