Same model may have multiple batches, images only for reference.

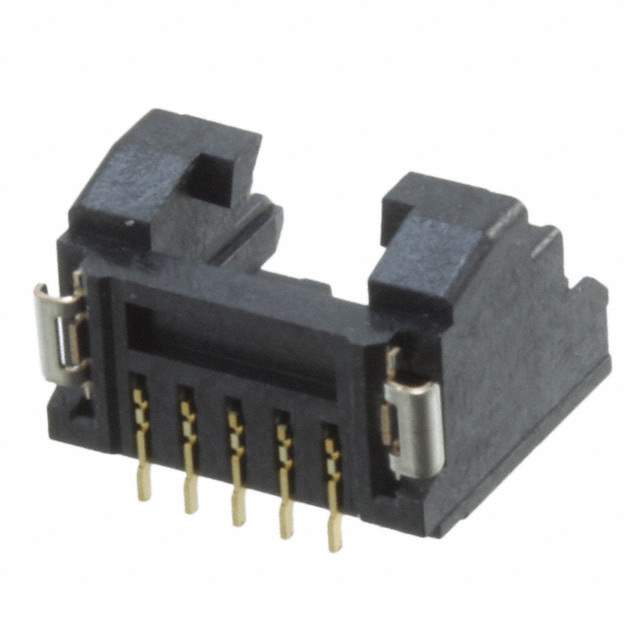

DF50A-5P-1V(51) Real Image
Same model may have multiple batches, images only for reference.

DF50A-5P-1V(51)

Part No DF50A-5P-1V(51)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HEADER SMD 5POS 1MM / Connector Header Surface Mount 5 position 0.039" (1.00mm)
Datasheet
DF50A-5P-1V(51) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Hirose Electric Co Ltd
Packaging Reel - TR
Connector Type Header
Contact Type Male Blade
Pitch - Mating 0.039" (1.00mm)
Number of Positions 5
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Surface Mount
Termination Solder
Fastening Type Push-Pull
Insulation Height 0.278" (7.06mm)
Contact Finish - Mating Gold
Contact Finish - Post Gold
Contact Material Brass
Insulation Material Polyester
Features Solder Retention
Temperature Range - Operating -35°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 1A
Voltage Rating 100V
Mated Stacking Heights 7.35mm
Base Product Number DF50
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number H12082CT,H12082TR,DF50A5P1V51,665-1008-2-51,H12082DKR
Standard Package 1,000
Win Source Part Number 1332884-DF50A-5P-1V(51)
Ultra Librarian 3D Model Ultra Librarian DF50A-5P-1V(51) CAD Model

Description

The DF50A-5P-1V(51) header connector from Hirose Electric Co Ltd is a 5-position, 1-row connector with a push-pull fastening type and a shrouded 4-wall design.

  • Positions: 5
  • Rows: 1
  • Fastening Type: Push-Pull
  • Shrouding: Shrouded 4-Wall
  • Contact Material: Brass
  • Termination: Solder
  • Contact Finish (Mating): Gold
  • Contact Finish (Post): Gold
  • Insulation Material: Polyester
  • Insulation Color: Black
  • Mated Stacking Height: 7.35mm
  • Voltage Rating: 100V
  • Application: Board-to-Cable/Wire
  • RoHS Compliant: Yes
  • Standard Package: 1,000 Pieces
  • Temperature Range: -35°C to 85°C
  • Current Rating: 1A
