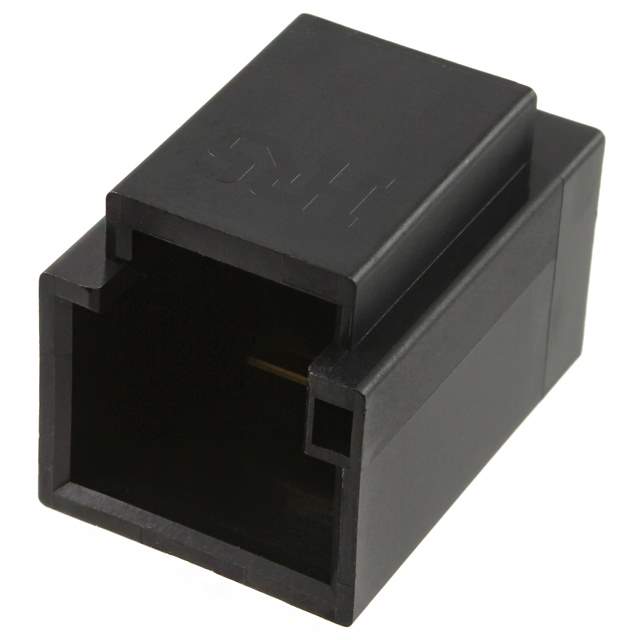

Same model may have multiple batches, images only for reference.

DF60-1P-10.16DSA(26)

Name: DF60-1P-10.16DSA(26)
Brand: Hirose Electric Co Ltd
SKU: 1337054
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	DF60-1P-10.16DSA(26)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 1POS / Connector Header Through Hole 1 position
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Hirose Electric Co Ltd
Series	EnerBee™ DF60
Package	Tray
Product Status	Obsolete
Connector Type	Header
Contact Type	Male Blade
Number of Positions	1
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Latch Holder
Contact Length - Post	0.150" (3.81mm)
Insulation Height	0.846" (21.50mm)
Contact Shape	Rectangular
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	8.00µin (0.203µm)
Contact Material	Copper Alloy
Insulation Material	Liquid Crystal Polymer (LCP) , Glass Filled
Features	Board Guide
Temperature Range - Operating	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	Varies by Wire Gauge
Mated Stacking Heights	30mm
Base Product Number	DF60
Standard Package	160
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1337054-DF60-1P-10.16DSA(26)
Ultra Librarian 3D Model	Ultra Librarian DF60-1P-10.16DSA(26) CAD Model

Alternative Products

Description

The EnerBee™ DF60 series male pin header from Hirose Electric Co Ltd has one position and features a board guide and latch holder. The manufacturer of this product is Hirose Electric Co Ltd.

Series: EnerBee™ DF60
Number of Positions: 1
Features: Board Guide, Latch Holder
Termination: Solder
Mounting Type: Through Hole
Contact Material: Copper Alloy
Packaging: Tray
Operating Temperature: -55°C ~ 105°C
