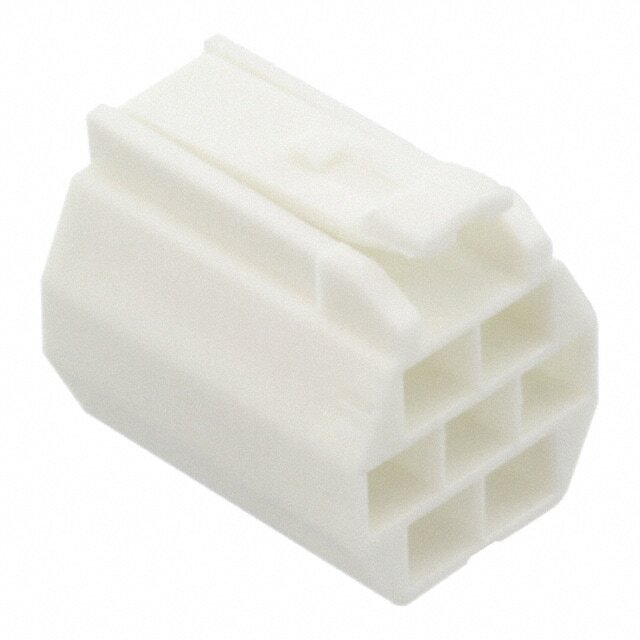

Same model may have multiple batches, images only for reference.

DF62B-7S-2.2C

Name: DF62B-7S-2.2C
Brand: Hirose Electric Co Ltd
SKU: 849604
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	DF62B-7S-2.2C
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN SOCKET HSG 7POS 2.20MM
Datasheet	DF62B-7S-2.2C Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr	Hirose Electric Co Ltd
Series	DF62
Package	Bulk
Product Status	Active
Connector Type	Socket
Contact Type	Female Socket
Number of Positions	7
Pitch	0.087" (2.20mm)
Number of Rows	3
Row Spacing	0.079" (2.00mm)
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Fastening Type	Latch Lock
Color	White
Temperature Range - Operating	-35°C ~ 105°C
Note	Contacts Not Included
Base Product Number	DF62
Standard Package	100 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.8000
Win Source Part Number	849604-DF62B-7S-2.2C
Ultra Librarian 3D Model	Ultra Librarian DF62B-7S-2.2C CAD Model

Alternative Products

Description

The DF62 series is a range of rectangular connector housings designed for various applications; the 849604-DF62B-7S-2.2C is a socket connector with 7 positions.

Positions: 7
Pitch: 0.087" (2.20mm)
Color: White
Fastening Type: Latch Lock
Termination: Crimp
Mounting: Free Hanging (In-Line)
Temperature Range: -35°C to 105°C
Status: Active
Package: Bulk
