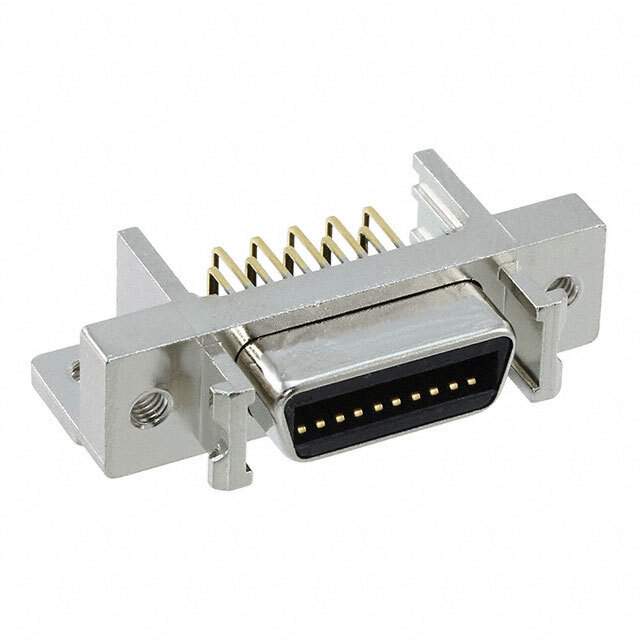

DX10M-20S(50) Real Image
Same model may have multiple batches, images only for reference.

DX10M-20S(50)

Part No DX10M-20S(50)
Manufacturer Hirose Electric Co Ltd
Catalog D - SUB, D - SHAPED connectors
Description CONN MINI HD RCPT 20P R/A SOLDER / 20 Position Receptacle Connector Miniature High Density (HD) Panel Mount, Through Hole, Right Angle Solder
Datasheet
DX10M-20S(50) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - Centronics Connectors
Mfr Hirose Electric Co Ltd
Series DXM
Package Tray
Connector Style Outer Shroud Contacts
Connector Type Receptacle
Number of Positions 20
Number of Rows 2
Mounting Type Panel Mount, Through Hole, Right Angle
Termination Solder
Flange Feature Housing/Shell (M2.6)
Type Miniature High Density (HD)
Contact Finish Gold
Contact Finish Thickness 11.8µin (0.30µm)
Base Product Number DX10
Standard Package 60
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1349209-DX10M-20S(50)
Ultra Librarian 3D Model Ultra Librarian DX10M-20S(50) CAD Model

Description

The Hirose Electric Co Ltd DX10M-20S(50) is a Centronics connector used in D-Sub and D-shaped connectors. Hirose Electric Co Ltd manufactures it.

  • Positions: 20
  • Rows: Two
  • Connector Type: Receptacle
  • Contact Type: Outer Shroud
  • Termination: Solder
  • Contact Finish: Gold
  • Mounting Type: Through Hole, Panel Mount, Right Angle
  • RoHS Compliant: Yes
  • Standard Package: 60 pieces
  • Application: Miniature High-Density (HD)
