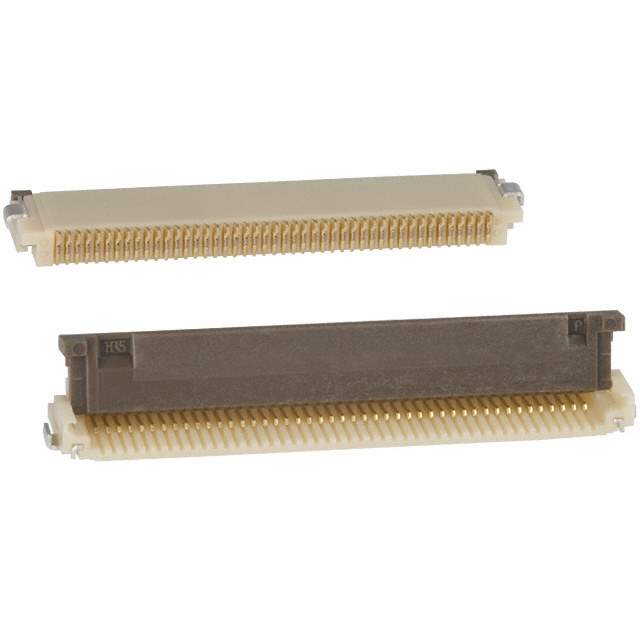

FH12-45S-0.5SH(55)

Name: FH12-45S-0.5SH(55)
Brand: Hirose Electric Co Ltd
SKU: 774553
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	FH12-45S-0.5SH(55)
Manufacturer	Hirose Electric Co Ltd
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FFC BOTTOM 45POS 0.50MM R/A / Conn FFC/FPC Connector SKT 45 POS 0.5mm Solder RA SMD T/R
Datasheet	FH12-45S-0.5SH(55) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Hirose Electric Co Ltd
Series	FH12
Packaging	Reel package
Flat Flex Type	FFC, FPC
Mounting	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Bottom
Number of Positions	45
Pitch	0.020" (0.50mm)
Termination	Solder
FFC, FCB Thickness	0.30mm
Height Above Board	0.079" (2.00mm)
Locking Feature	Flip Lock
Cable End Type	Straight
Contact Material	Phosphor Bronze
Contact Finish	Gold
Housing Material	Polyamide (PA), Nylon
Actuator Material	Polyphenylene Sulfide (PPS)
Features	Zero Insertion Force (ZIF)
Voltage Rating	50V
Operating Temperature Range	-40°C ~ 85°C
Material Flammability Rating	UL94 V-0
Current Rating	0.5A
Housing Color	Beige
Actuator Color	Brown
Mating Cycles	20
Win Source Part Number	774553-FH12-45S-0.5SH(55)
Popularity	Medium
Supply and Demand Status	Limited
Quantity per package	2k pcs
Family Name	FH12
Introduction Date	September 30, 1998
ECCN	EAR99
Country of Origin	Japan
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian FH12-45S-0.5SH(55) CAD Model

Alternative Products

Description

The Hirose Electric Co Ltd FH12-45S-0.5SH(55) contacts connector is a bottom contacts, flip lock component with 45 positions.

Positions: 45
Pitch: 0.50mm
Contact Finish: Gold
Mounting Type: Surface Mount, Right Angle
Insulation Material: Polyamide (PA), Nylon
Series: FH12
Package: Reel
Locking Feature: Zero Insertion Force (ZIF), Flip Lock
Operating Temperature: -40°C to 85°C
