Same model may have multiple batches, images only for reference.

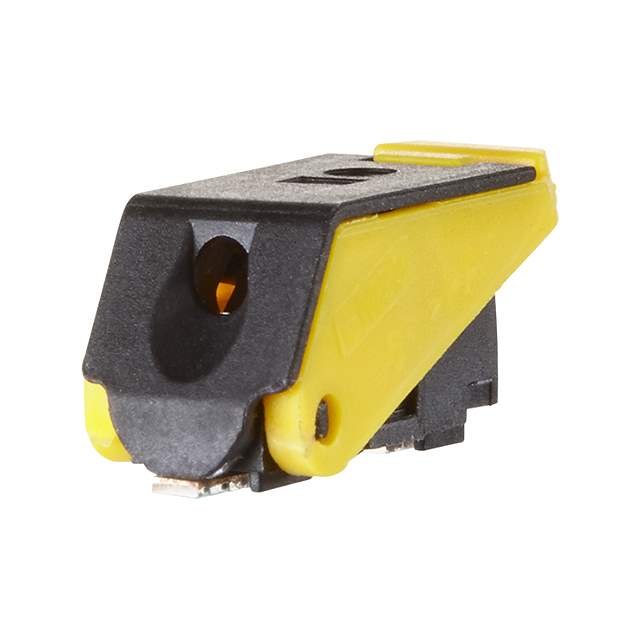

SM99S01VBNN02G7 Real Image
Same model may have multiple batches, images only for reference.

SM99S01VBNN02G7

Part No SM99S01VBNN02G7
Manufacturer METZ CONNECT USA Inc.
Catalog Terminal Blocks
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks - Wire to Board
Mfr METZ CONNECT USA Inc.
Package Tape & Reel
Number of Levels 1
Positions Per Level 1
Mating Orientation Horizontal with Board
Current 9 A
Voltage 300 V
Wire Gauge 16-24 AWG
Mounting SMD (SMT)
Wire Termination Screwless - Spring Cage, Tension Clamp
Features Push Button Actuated
Color Yellow
Temperature Range - Operating -40°C ~ 105°C
Housing Material Polyamide (PA6T), Nylon 6T
Contact Material - Plating Copper Alloy - Tin Plated
Clamp Material - Plating Steel
Base Product Number SM99S01VB
Other Names 1849-1169-1,1849-1169-2,1849-1169-6
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1285207-SM99S01VBNN02G7
Ultra Librarian 3D Model Ultra Librarian SM99S01VBNN02G7 CAD Model

Description

The SM99S01VBNN02G7 is a push button actuated terminal block from Metz Connect USA Inc.

  • Use: wire to board connections
  • Wire Gauge: 16-24 AWG
  • Housing Material: polyamide (PA6T) and nylon 6T
  • Contact Material: copper alloy with tin plating
  • Voltage Rating: 300V
  • Current Rating: 9A
  • Wire Termination: screwless spring cage and tension clamp
  • Temperature Range: -40°C to 105°C
  • Package: tape and reel
  • Mounting: surface mountable
  • Mating Orientation: horizontal mating orientation with the board
  • Clamp Material: steel
  • ECCN: EAR99 compliant
  • REACH: unaffected
