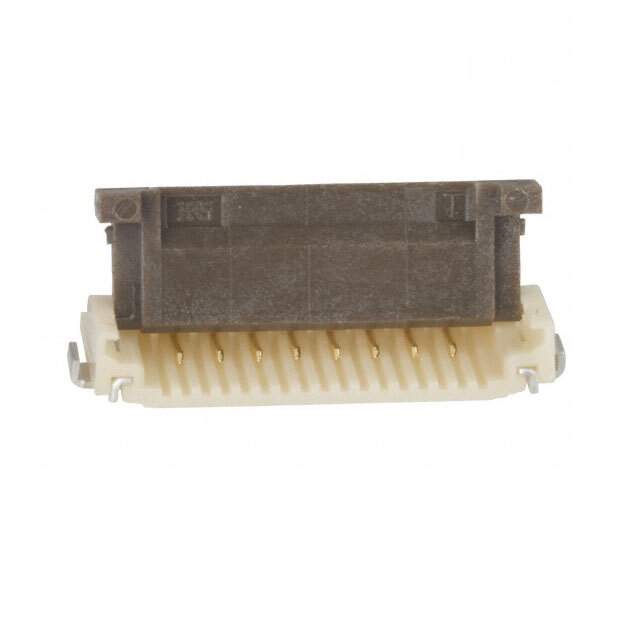

FH12-8S-1SH(1)(98) Real Image
Same model may have multiple batches, images only for reference.

FH12-8S-1SH(1)(98)

Part No FH12-8S-1SH(1)(98)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC BOTTOM 8POS 1.00MM R/A / 8 Position FFC, FPC Connector Contacts, Bottom 0.039" (1.00mm) Surface Mount, Right Angle
Datasheet
FH12-8S-1SH(1)(98) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr Hirose Electric Co Ltd
Series FH12
Package Tape & Reel (TR)
Flat Flex Type FFC, FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 8
Pitch 0.039" (1.00mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.079" (2.00mm)
Locking Feature Flip Lock
Cable End Type Straight
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Polyamide (PA), Nylon
Actuator Material Polyphenylene Sulfide (PPS)
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -40°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Housing Color Beige
Actuator Color Brown
Mating Cycles 20
Base Product Number FH12
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Names 528-0032-3-98
Standard Package 500
Win Source Part Number 1059100-FH12-8S-1SH(1)(98)
Ultra Librarian 3D Model Ultra Librarian FH12-8S-1SH(1)(98) CAD Model

Description

The 1059100-FH12-8S-1SH(1)(98) is a flat flexible connector designed for board-to-cable/wire connections.

  • Product: 1059100-FH12-8S-1SH(1)(98)
  • Description: Flat flexible connector designed for board-to-cable/wire connections.
  • Positions: 8
  • Pitch: 0.039 inches (1.00mm)
  • Features: Solder retention and zero insertion force (ZIF)
  • Connector Type: Contacts with a bottom orientation
  • Contact Finish: Gold
  • Voltage Rating: 50V
  • Height Above Board: 0.079 inches (2.00mm)
  • Mounting: Surface mounted
  • Alternative Parts: FH12-6S-1SH(55), 52271-0879, and XF2J-0624-12A
  • ECCN: EAR99
  • Standard Package: 500
