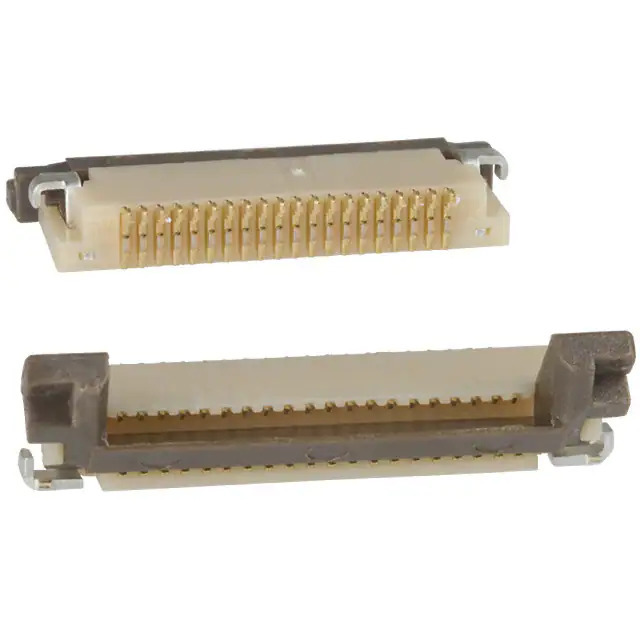

FH12A-20S-0.5SH(55) Hirose Electric Co Ltd
Same model may have multiple batches, images only for reference.

FH12A-20S-0.5SH(55)

Part No FH12A-20S-0.5SH(55)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC FPC TOP 20POS 0.5MM R/A / 20 Position FFC, FPC Connector Contacts, Top 0.020" (0.50mm) Surface Mount, Right Angle
Datasheet
FH12A-20S-0.5SH(55) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - FFC, FPC (Flat Flexible) Connectors - FFC, FPC (Flat Flexible) Connector Assemblies
Mfr Hirose Electric Co Ltd
Series FH12
Package Tape & Reel
Product Status Active
Flat Flex Type FFC, FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Top
Number of Positions 20
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.079" (2.00mm)
Locking Feature Flip Lock
Cable End Type Straight
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Polyamide (PA), Nylon
Actuator Material Polyphenylene Sulfide (PPS)
Features Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -40°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Contact Finish Thickness -
Housing Color Beige
Actuator Color Brown
Mating Cycles 20
Base Product Number FH12
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Win Source Part Number 1362742-FH12A-20S-0.5SH(55)
Ultra Librarian 3D Model Ultra Librarian FH12A-20S-0.5SH(55) CAD Model

Description

The FH12A-20S-0.5SH(55) is a FFC, FPC (Flat Flexible) connector assembly manufactured by Hirose Electric Co Ltd.

  • Series: FH12
  • Mounting Type: Surface Mount, Right Angle
  • Housing Color: Beige
  • Termination: Solder
  • Number of Positions: 20
  • Pitch: 0.020" (0.50mm)
  • Current Rating: 0.5A
  • Voltage Rating: 50V
  • Operating Temperature: -40°C to 85°C
  • Product Status: Active
  • Packaging: Tape & Reel
  • Application: FFC, FPC (Flat Flexible) connector applications
  • Features: Zero Insertion Force (ZIF)
