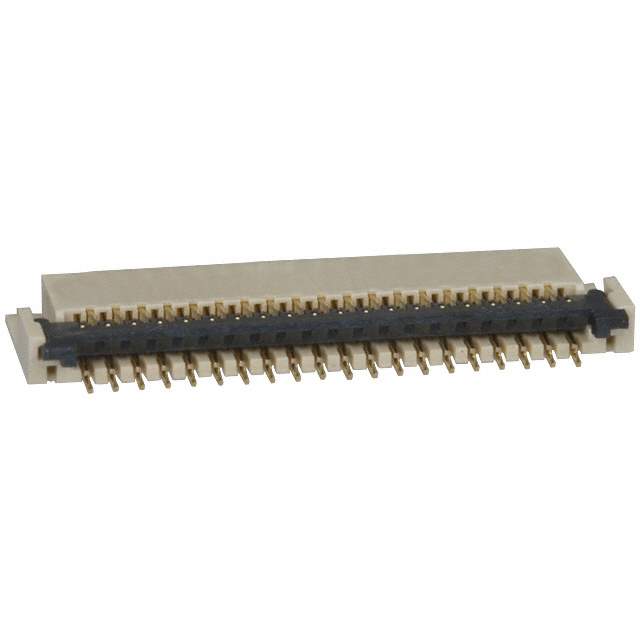

FH23-39S-0.3SHW(05) Real Image
Same model may have multiple batches, images only for reference.

FH23-39S-0.3SHW(05)

Part No FH23-39S-0.3SHW(05)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC BOTTOM 39POS 0.30MM R/A / Conn FPC Connector SKT 39 POS 0.3mm Solder RA SMD T/R
Datasheet
FH23-39S-0.3SHW(05) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Series FH23
Packaging Reel package
Flat Flex Type FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 39
Pitch 0.012" (0.30mm)
Termination Solder
FFC, FCB Thickness 0.20mm
Height Above Board 0.049" (1.25mm)
Locking Feature Flip Lock
Cable End Type Tapered
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material Liquid Crystal Polymer (LCP), Halogen Free
Features Low Insertion Force (LIF)
Voltage Rating 30V
Operating Temperature Range -55°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating 0.3A
Housing Color Beige
Actuator Color Black
Mating Cycles 10
Win Source Part Number 774562-FH23-39S-0.3SHW(05)
Popularity Medium
Supply and Demand Status Balance
Family Name FH23
Introduction Date November 01, 2002
ECCN EAR99
Country of Origin Japan
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian FH23-39S-0.3SHW(05) CAD Model

Description

The FH23-39S-0.3SHW(05) from Hirose Electric is a low profile, low insertion force (LIF) FFC/FPC connector with a flip lock mechanism.

  • Locking Feature: Flip Lock
  • Positions: 39
  • Pitch: 0.012 inches (0.30mm)
  • Height Above Board: 0.049 inches (1.25mm)
  • Housing Material: Liquid Crystal Polymer (LCP)
  • Contact Material: Phosphor Bronze with Gold Finish
  • FFC/FPC Thickness: 0.20mm
  • Cable End Type: Tapered
  • Voltage Rating: 30V
  • Current Rating: 0.3A
  • Operating Temperature: -55°C to 85°C
