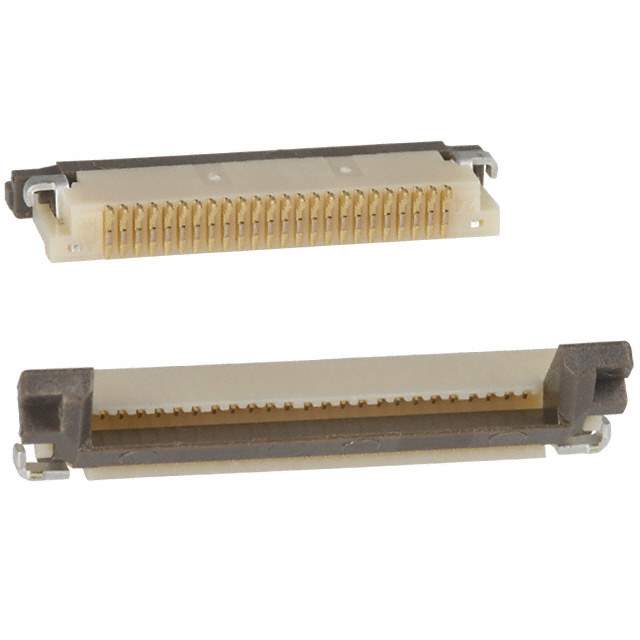

FH12A-24S-0.5SH(55)

Part No FH12A-24S-0.5SH(55)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description Conn FFC/FPC Connector SKT 24 POS 0.5mm Solder RA SMD T/R / CONN FFC TOP 24POS 0.50MM R/A
Datasheet
FH12A-24S-0.5SH(55) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Packaging Reel - TR
Status Active
Flat Flex Type FFC, FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Top
Number of Positions 24
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.079" (2.00mm)
Locking Feature Flip Lock
Cable End Type Straight
Contact Finish Gold
Housing Material Polyamide (PA), Nylon
Actuator Material Polyphenylene Sulfide (PPS)
Features Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -40°C to 85°C
Material Flammability Rating UL94 V-0
Current Rating 0.5A
Housing Color Beige
Actuator Color Brown
Mating Cycles 20
Win Source Part Number 1038722-FH12A-24S-0.5SH(55)
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Quantity per package 2k pcs
Family Name FH12
Introduction Date September 30, 1998
ECCN EAR99
Country of Origin Japan
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian FH12A-24S-0.5SH(55) CAD Model

Description

The Hirose Electric Co Ltd FH12A-24S-0.5SH(55) is a zero insertion force (ZIF) connector designed for flat flex cables (FFC) and flexible printed circuits (FPC).

  • Positions: 24
  • Pitch: 0.020 inches (0.50mm)
  • Voltage Rating: 50V
  • Current Rating: 0.5A
  • Cable Insertion/Removal: Flip Lock
  • Termination: Soldered Contacts, Gold Plating
  • Housing Material: Polyamide (PA)
  • Flammability Rating: UL94 V-0
  • Mounting: Surface Mountable
  • Orientation: Right Angle
  • Height Above Board: 0.079 inches (2.00mm)
