Same model may have multiple batches, images only for reference.

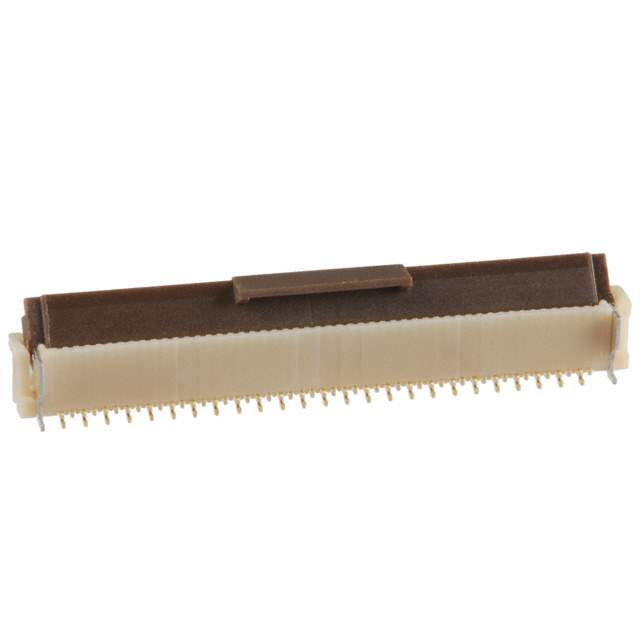

FH12-50S-0.5SVA(54) Real Image
Same model may have multiple batches, images only for reference.

FH12-50S-0.5SVA(54)

Part No FH12-50S-0.5SVA(54)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC VERT 50POS 0.50MM SMD
Datasheet
FH12-50S-0.5SVA(54) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Packaging Reel - TR
Status Active
Flat Flex Type FFC, FPC
Mounting SMD (SMT)
Connector/Contact Type Contacts, Vertical, 1 Sided
Number of Positions 50
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.142" (3.60mm)
Locking Feature Flip Lock
Cable End Type Straight
Contact Finish Gold
Housing Material Polyamide (PA), Nylon
Actuator Material Polyphenylene Sulfide (PPS)
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -40°C to 85°C
Material Flammability Rating UL94 V-0
Current Rating 0.5A
Win Source Part Number 1038718-FH12-50S-0.5SVA(54)
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Power Management, Industrial
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian FH12-50S-0.5SVA(54) CAD Model

Description

The Hirose Electric Co Ltd FH12-50S-0.5SVA(54) is a connector used for power management and industrial applications.

  • Manufacturer: Hirose Electric Co Ltd
  • Product Name: FH12-50S-0.5SVA(54)
  • Application: Power Management and Industrial
  • Popularity: Medium
  • Supply and Demand: Balance
  • Positions: 50
  • Pitch: 0.020 inches
  • Features: Solder Retention, Zero Insertion Force (ZIF)
  • Voltage Rating: 50V
  • Termination: Solder
  • Contact Finish: Gold
  • Material: Polyamide (PA) and Polyphenylene Sulfide (PPS) Actuator
