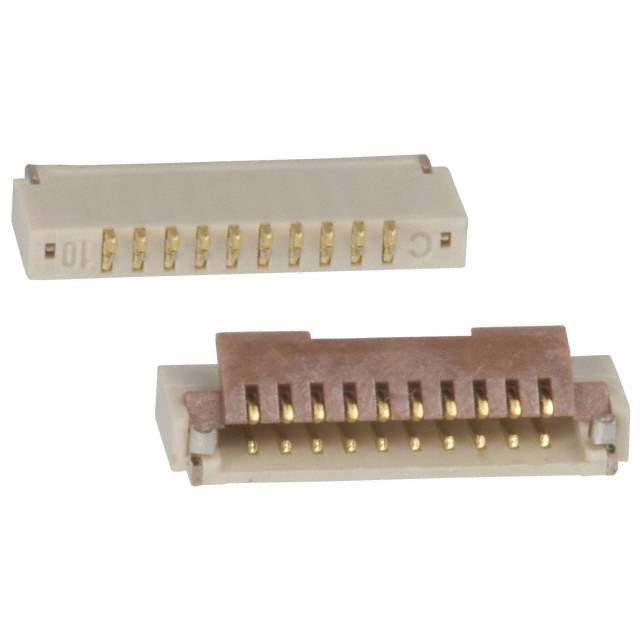

Same model may have multiple batches, images only for reference.

FH19C-10S-0.5SH(10)

Name: FH19C-10S-0.5SH(10)
Brand: Hirose Electric Co Ltd
SKU: 1333335
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	FH19C-10S-0.5SH(10)
Manufacturer	Hirose Electric Co Ltd
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FFC BOTTOM 10POS 0.50MM R/A / 10 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Datasheet	FH19C-10S-0.5SH(10) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors>FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer	Hirose Electric Co Ltd
Packaging	Reel - TR
Flat Flex Type	FFC, FPC
Mounting	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Bottom
Number of Positions	10
Pitch	0.020" (0.50mm)
Termination	Solder
FFC, FCB Thickness	0.20mm
Height Above Board	0.035" (0.88mm)
Locking Feature	Flip Lock
Cable End Type	Tapered
Contact Material	Phosphor Bronze
Contact Finish	Gold
Housing Material	Liquid Crystal Polymer (LCP)
Actuator Material	Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS)
Features	Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating	50V
Temperature Range - Operating	-55°C ~ 85°C
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	0.5A
Housing Color	Beige
Actuator Color	Brown
Mating Cycles	20
Base Product Number	FH19
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4051
Other Part Number	H125812DKR,H125812CT,H125812TR,FH19C-10S-0.5SH(10)-ND,580-0412-7-10
Standard Package	5,000
Win Source Part Number	1333335-FH19C-10S-0.5SH(10)
Ultra Librarian 3D Model	Ultra Librarian FH19C-10S-0.5SH(10) CAD Model

Description

The Hirose Electric Co Ltd 1333335-FH19C-10S-0.5SH(10) is a connector assembly with a pitch of 0.020" (0.50mm) and 10 positions.

Manufacturer: Hirose Electric Co Ltd
Pitch: 0.020" (0.50mm)
Positions: 10
Features: Solder Retention, Zero Insertion Force (ZIF), Flip Lock
Contact Finish: Gold
Contact Material: Phosphor Bronze
Materials: Liquid Crystal Polymer (LCP) and Polyphenylene Sulfide (PPS) actuator materials
RoHS Compliance: RoHS Compliant
Temperature Range: -55°C ~ 85°C
