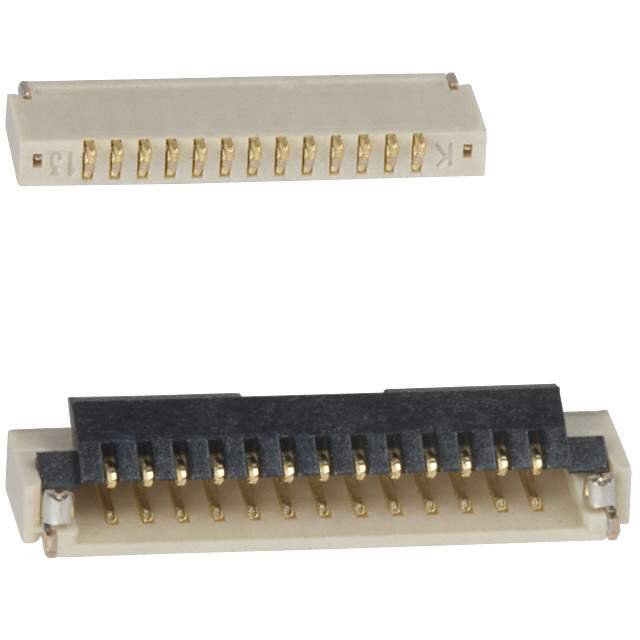

FH19SC-13S-0.5SH(05) Real Image
Same model may have multiple batches, images only for reference.

FH19SC-13S-0.5SH(05)

Part No FH19SC-13S-0.5SH(05)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC BOTTOM 13POS 0.50MM R/A / Conn FFC/FPC Connector SKT 13 POS 0.5mm Solder RA SMD T/R
Datasheet
FH19SC-13S-0.5SH(05) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Series FH19SC
Packaging Reel package
Flat Flex Type FFC, FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 13
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.037" (0.95mm)
Locking Feature Flip Lock
Cable End Type Tapered
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS)
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V
Operating Temperature Range -55°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating 0.5A
Housing Color Beige
Actuator Color Black
Mating Cycles 20
Win Source Part Number 774560-FH19SC-13S-0.5SH(05)
Popularity Medium
Supply and Demand Status Limited
Quantity per package 5k pcs
Family Name FH19SC
Introduction Date September 08, 2006
ECCN EAR99
Country of Origin Japan
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian FH19SC-13S-0.5SH(05) CAD Model

Description

The 774560-FH19SC-13S-0.5SH(05) is a rectangular connector that features a contact type of contacts, bottom with a flip lock locking feature.

  • Contact Type: Contacts, Bottom
  • Locking Feature: Flip Lock
  • Positions: 13
  • Pitch: 0.020" (0.50mm)
  • Contact Material: Phosphor Bronze
  • Voltage Rating: 50V
  • Current Rating: 0.5A
  • Height Above Board: 0.037" (0.95mm)
  • Termination: Solder
  • Package: Reel
  • Mounting Type: Surface Mount, Right Angle
  • Material Flammability Rating: UL94 V-0
  • Housing Color: Beige
  • Housing Material: Liquid Crystal Polymer (LCP), Halogen-Free
  • Actuator Material: Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS)
  • FFC/FPC Compatibility: FFC, FPC
  • FFC, FCB Thickness: 0.30mm
  • Actuator Color: Black
