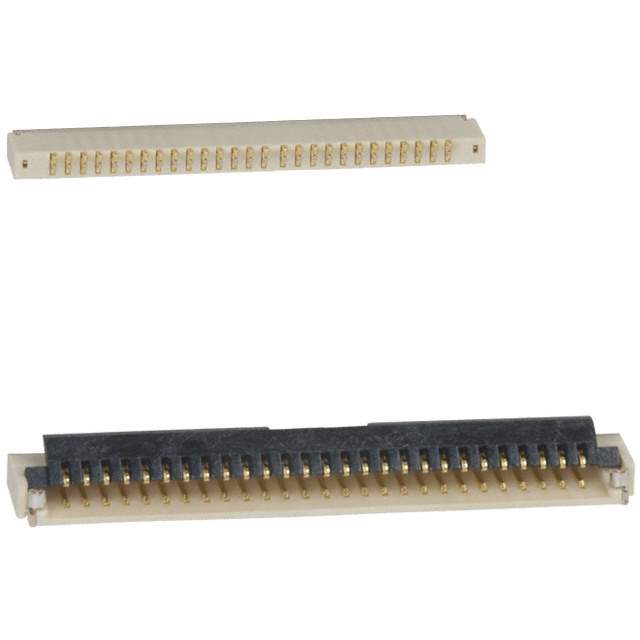

FH19SC-27S-0.5SH(05) Real Image
Same model may have multiple batches, images only for reference.

FH19SC-27S-0.5SH(05)

Part No FH19SC-27S-0.5SH(05)
Manufacturer Hirose Electric Co Ltd
Catalog Flat Flex Cables (FFC, FPC)
Description CONN FFC BOTTOM 27POS 0.50MM R/A
Datasheet
FH19SC-27S-0.5SH(05) Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Features 27 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Manufacturer Hirose Electric Co Ltd
Series FH19SC
Package Reel - TR
Part Status Obsolete
Operating Temperature Range -55°C ~ 85°C
Mounting Surface Mount, Right Angle
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Part Number HFN527DKR, *FH19SC-27S-0.5SH(05), FH19SC27S05SH05, HFN527TR, HFN527CT
Quantity per package 5000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 871832-FH19SC-27S-0.5SH(05)
Ultra Librarian 3D Model Ultra Librarian FH19SC-27S-0.5SH(05) CAD Model

Description

The FH19SC-27S-0.5SH(05) is a connector manufactured by Hirose Electric Co Ltd.

  • Mounting: Surface Mount, Right-Angle
  • Positions: 27
  • Pitch: 0.020" (0.50mm)
  • Series: FH19SC
  • Connector Type: FFC, FPC
  • Temperature Range: -55°C to 85°C
  • Packaging: Reel
  • Contact Type: Bottom
  • Materials: High-Quality
