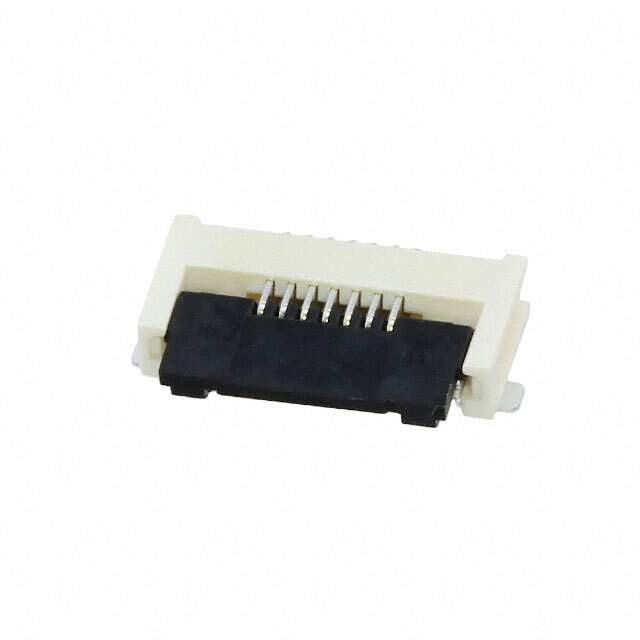

The Easy-On FD19 505110 is a top-of-the-line FFC/FPC connector that is perfect for use in a wide range of electronic applications.

• Positions: 6
• Pitch: 0.020"
• Feature: Solder Retention
• Feature: Zero Insertion Force (ZIF)
• Contact Finish: Gold
• Contact Finish Thickness: 1.97µin (0.050µm)
• Packaging: Tape & Reel
• Contact Material: Phosphor Bronze
• Voltage Rating: 50V
• Height Above Board: 0.075" (1.90mm)
• Cable Type: FFC, FPC flat flex cables
• Connector/Contact Type: Contacts, Bottom
• Housing Material: Liquid Crystal Polymer (LCP), Glass-Filled
• Actuator Material: Polyamide (PA), nylon, glass-filled
• Housing Color: Beige
• Actuator Color: Black
• Flammability Rating: UL94 V-0
• Temperature Range: -40°C ~ 105°C
• Current Rating: 0.5A
• Standard Package: 3,000 connectors
• Mounting Type: Surface Mount, Right Angle
• Locking Feature: Flip Lock and Backlock
